| Brand Name: | Jingchuang |
| Model Number: | JC-CC30T/D |
| MOQ: | 1 |
| Price: | Negotiations |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability: | 100 |

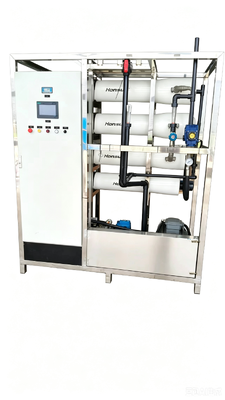

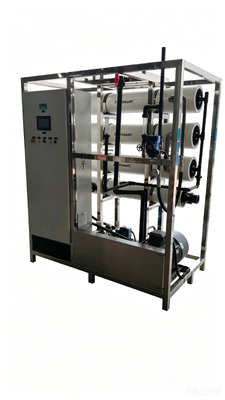

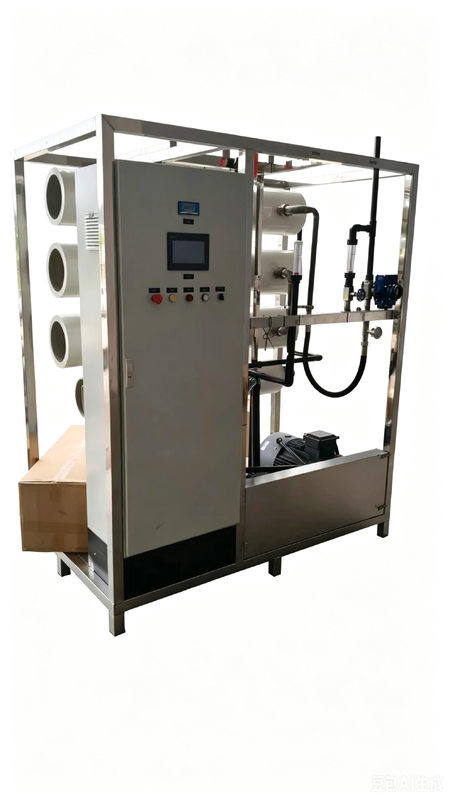

This equipment is a 20 metric tons per day integrated marine reverse osmosis (RO) seawater desalination system, specifically designed for various types of ocean-going vessels, engineering vessels, fishing boats, and offshore platforms. It employs a proven high-pressure reverse osmosis desalination process and features a modular, integrated structure adapted to the harsh marine environment characterized by ship motion, humidity, and salt fog corrosion. The system is energy-efficient, low-consumption, and operates stably with high automation. The treated water meets standards for shipboard domestic and drinking freshwater and is compatible with classification society certification, making it a core piece of equipment for freshwater supply at sea.
| Parameter | Specification |
|---|---|
| Rated Water Production | 20 m³/24h (at ambient temperature of 25°C and standard seawater salinity conditions) |
| Instantaneous Water Production | 0.85 m³/h |
| System Desalination Rate | ≥99.2% (after more than three years of stable operation) |
| Feed Water Quality | Natural seawater, feed water salinity ≤40,000 mg/L |
| Product Water Quality | TDS ≤ 500 mg/L, compliant with the "GB 5749-2022 Hygiene Standards for Domestic Drinking Water," suitable for direct drinking, personal hygiene, and equipment makeup water |
| System Recovery Rate | 35%-40% (optimal recovery rate for marine desalination, preventing membrane scaling and fouling) |
| Operating Pressure | System high-pressure operating pressure 5.5-6.5 MPa |
| Operating Temperature | Feedwater temperature 0°C-32°C; ambient operating temperature 0°C-45°C |
| Operating Humidity | 20%-90% (non-condensing, salt-fog environment) |
Seawater intake → Coarse filtration to trap impurities → Raw water booster pump
