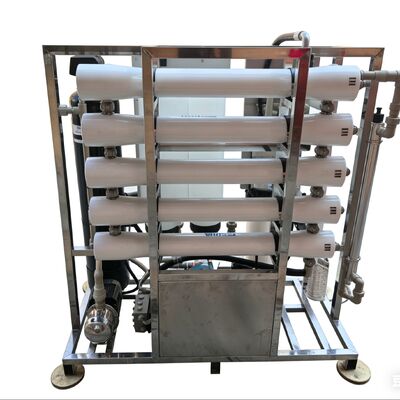

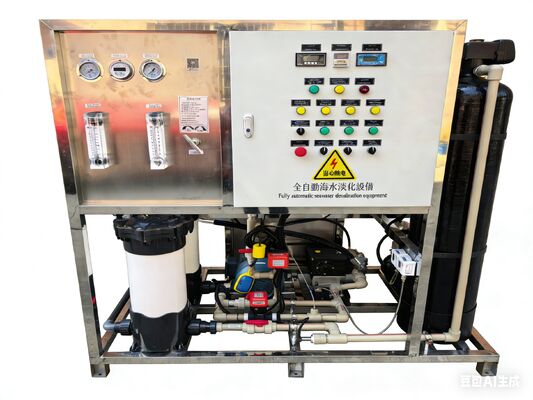

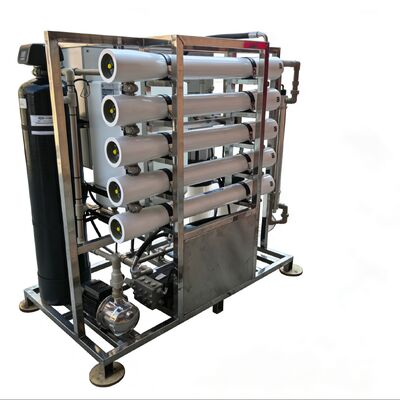

Small Reverse Osmosis Seawater Desalination Plant

Small Reverse Osmosis Seawater Desalination Plant

Brand Name:	Clean Creation
Model Number:	JCSWRO-20T
MOQ:	1
Price:	communicate
Payment Terms:	T/T
Supply Ability:	1000 units per day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Model:

Net Creation-31

Freshwater Production:

1 Ton Of Water Per Hour

Power (output):

7050w

Power Supply:

AC220V-380-440V / 50-60Hz

Water Quality:

Meet Water Quality Standards

Product Size (L*B*H):

1600mm*900mm*1750mm

Weights:

Communicate

Main Features:

Compact And Generous Structure; Easy To Operate And Maintain

Packaging Details:

communicate

Highlight:

small seawater desalination plant

reverse osmosis desalination system

compact RO seawater purifier

Product Description

Small Reverse Osmosis Seawater Desalination Plant

Automatic Reverse Osmosis Desalination System For Seawater Treatment

Fully automatic reverse osmosis desalination equipment designed to convert seawater into fresh water. Ideal for islands, coastal areas, and any location requiring fresh water from seawater sources.

Product Overview

The 20T/D fully automatic reverse osmosis seawater desalination equipment is a highly efficient water treatment system that operates automatically without manual intervention, suitable for various seawater desalination requirements.

Technical Features

Fully automatic operation with automated control system for unattended functionality
High efficiency design focused on energy conservation and reduced operating costs
Modular construction for easy maintenance and system upgrades

Product Parameters

Processing Capacity	20 tons/day (T/D)
Water Production Rate	1 ton/hour
Power Consumption	7050 watts (W)
Power Requirement	220-380 -440volts (V)
Dimensions	1600mm (L) × 900mm (W) × 1750mm (H)

This quotation includes:

Freight within China

II. Technical Specifications

Daily water production: 10–20 tonnes/day (20°C)

Feedwater salinity: ≤40,000 mg/L

Feedwater temperature: 5–36°C

Feedwater flow rate: 2 m³/hour

Feedwater pH range: 3.0–10.0

Feed water pressure range: -0.1 to 1 kg/cm²

Product water salinity: ≤700 mg/L

System desalination rate: ≥99.3%

Product water quality: Compliant with GB5749-06 ‘Drinking Water Quality Standard’

Product water pH: 6.5–8.5

Product water pressure: >0.15 MPa

System recovery rate: ≈30% (Subject to temperature and water quality variations)

Power supply: AC220-380-440V/50-60Hz/Three-phase

Installed capacity: ≈7KW (Main unit)

Electrical control cabinet: Control voltage: 380VAC

Maximum dimensions: Length × Width × Height = 1680mm × 950mm × 1750mm

Weight: ≈700Kg (Dry weight)

System Components

Reverse osmosis membrane - Core component for salt and impurity removal
Pretreatment system - Includes filters and chemical treatment units
Control system - Monitors and controls the entire desalination process

Application Areas

Islands - Fresh water supply for residential and commercial use
Coastal areas - Water solutions for residential and industrial applications
Ships - Onboard fresh water production reducing shore dependency

Operation & Maintenance

Regular maintenance including inspection and replacement of reverse osmosis membranes and filters ensures optimal water quality and system performance. The system maintains high water quality standards through advanced reverse osmosis technology and automated control systems.

Important Note:

Due to the specialized nature of this product, please contact our customer service before purchasing. Our team will assess your specific water consumption requirements and water quality conditions to recommend the most suitable equipment. To avoid future complications, please do not make blind purchases. For detailed specifications, technical parameters, or product images, please contact customer service. We appreciate your support of Net Environmental Protection and thank you for your inquiry.
