Sailboat Water-Making Device

Name: Sailboat Water-Making Device
Brand: Dongguan Jingchuang Environmental Protection Equipment Co.
SKU: JC-0.5T/D
Availability: InStock

Brand Name:	nettronics
Model Number:	JC-0.5T/D
MOQ:	1
Price:	liaise
Payment Terms:	T/T
Supply Ability:	liaise

Detail Information

Product Description

Detail Information

Place of Origin:

sino

Certification:

Product Model:

JC-0.5T/D

Freshwater Production:

500L/D

Power (output):

0.3kw

Power Supply:

AC24V-48V-220V / 50-60Hz

Water Quality:

Conforms To Drinking Water Quality Standard GB5749-2022

Product Size (L*B*H):

800mm*400mm*300mm

Weights:

30KG

Main Features:

Compact And Generous Structure; Easy To Operate And Maintain

Packaging Details:

Export Wooden Box

Highlight:

sailboat water desalinator

yacht water-making device

marine desalination system

Product Description

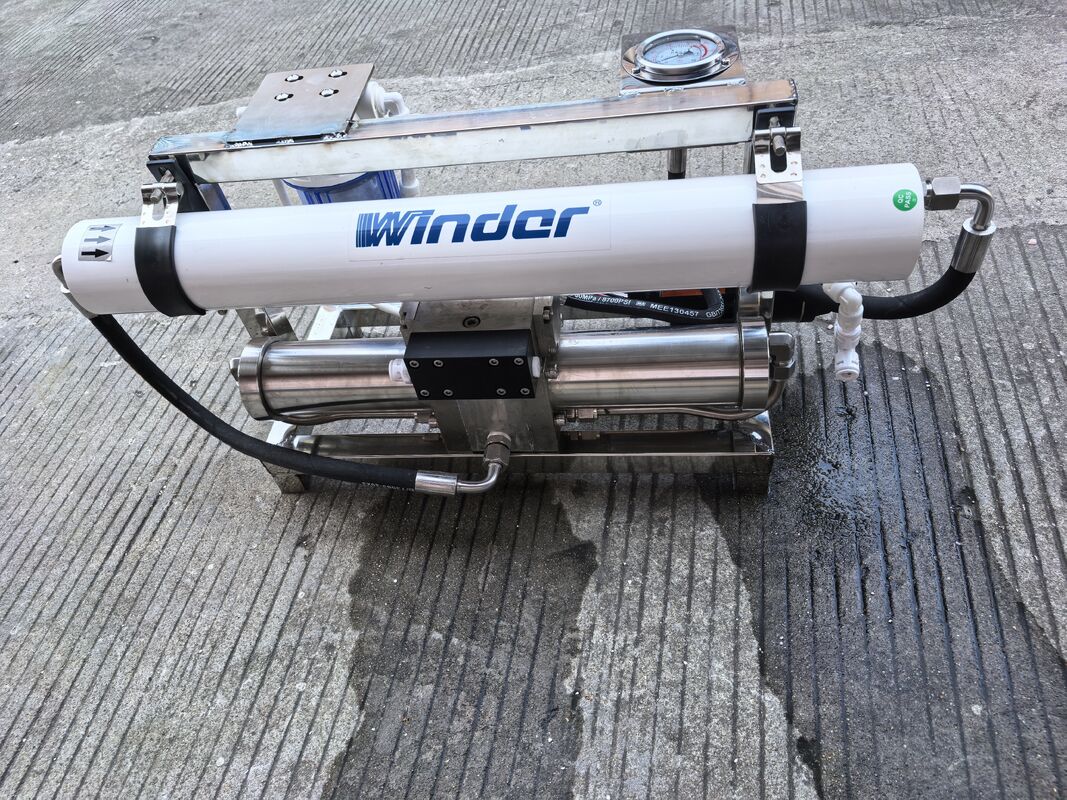

Sailboat Water-Making Device

Yacht 24V Seawater Desalination Unit

One of the most valued solutions for Nettronics' environmentally friendly yachts is the ability to produce fresh water. As a distinctive feature of environmentally friendly yachts, a yacht desalination machine can efficiently purify seawater into drinkable fresh water through reverse osmosis membranes, which reduces the amount of bottled drinking water in reserve. A desalination machine not only minimizes plastic waste but also enhances self-sufficiency for business boat operations.

Drinking water is the source of life. Currently, 2 billion people worldwide face a lack of fresh water resources, with water scarcity concentrated in island countries, saline and alkaline areas, ocean-going ships, and offshore drilling platforms. Desalination units focus on solving drinking water problems on ships, islands, drilling platforms, and saline areas by converting seawater into potable water.

Product Specifications

Product Model	JC-0.5T/D
Water Quality	Complies with drinking water standard GB5749-2022
Water Production	500 litres/hour
Power	0.3KW
Desalination Rate	>99.5%
Power Supply	AC24V-220V / 50Hz /60HZ
Salinity of Produced Water	<700mg/L
Protection Grade	IP54
System Recovery Rate	25% (depending on temperature and water quality)
Dimensions	800400300 (LWH)
Operating Pressure	<6.5Mpa
Net Weight	30Kg
Reverse Osmosis Membrane	RO membrane shell
Material Composition	SUS316 stainless steel

System Functions

High pressure unloading - automatic shutdown protection with sound and light alarm when water pressure exceeds 6.2MPa
Low-pressure shutdown protection - automatic shutdown with alarm when inlet pressure is less than 0.05MPa
Manual multi-way valve for multi-media filter cleaning when differential pressure reaches 0.1MPa
Reverse osmosis membrane cleaning system for physical cleaning, chemical cleaning, and protective fluid refilling

Main Components

Inlet pump: SUS316
Multi-media filter: Ø100FRP
Security filter: 5' x 5μm, UPVC
Precision filter: 5' x 5μm, UPVC
High pressure pump: Italy imported AR brand / South pump (CNP)
Reverse osmosis membrane: LG / U.S. Dow / Toray / Hydrogen seawater membrane
Membrane shell: Chengda sea (FirstLine) FRP material
Cleaning tank: PE
Chemical cleaning device: System supporting
Electrical components: Schneider brand
Conductivity meter: Kreda brand

Factory Equipment List

Water treatment equipment
Product operating instructions and usage video
Completion documentation (product certification, factory test report, packaging list)
Other consumables and accessories

Note: Water production refers to conditions of 25°C water temperature, 35000mg/L salt content, and 5Mpa operating pressure. Equipment can be customized according to customer requirements.

Important: Due to product specificity, please contact our customer service before purchasing. Our team will recommend the right products based on your water consumption and quality requirements to avoid future complications. For specific specifications, parameters, or images, please contact customer service for detailed assistance. Thank you for your support of Nettronics Environmental Protection!
