Yacht 24V Seawater Desalination Unit

Name: Yacht 24V Seawater Desalination Unit
Brand: Dongguan Jingchuang Environmental Protection Equipment Co.
SKU: JC-0.5T/D
Availability: InStock

Brand Name:	nettronics
Model Number:	JC-0.5T/D
MOQ:	1
Price:	liaise
Payment Terms:	T/T
Supply Ability:	liaise

Detail Information

Product Description

Detail Information

Place of Origin:

sino

Certification:

Product Model:

JC-0.5T/D

Freshwater Production:

500L/D

Power (output):

0.3kw

Power Supply:

AC24V-48V-220V / 50-60Hz

Water Quality:

Conforms To Drinking Water Quality Standard GB5749-2022

Product Size (L*B*H):

800mm*400mm*300mm

Weights:

30KG

Main Features:

Compact And Generous Structure; Easy To Operate And Maintain

Packaging Details:

Export Wooden Box

Highlight:

24V yacht desalination unit

seawater desalinator for yachts

marine desalination system with warranty

Product Description

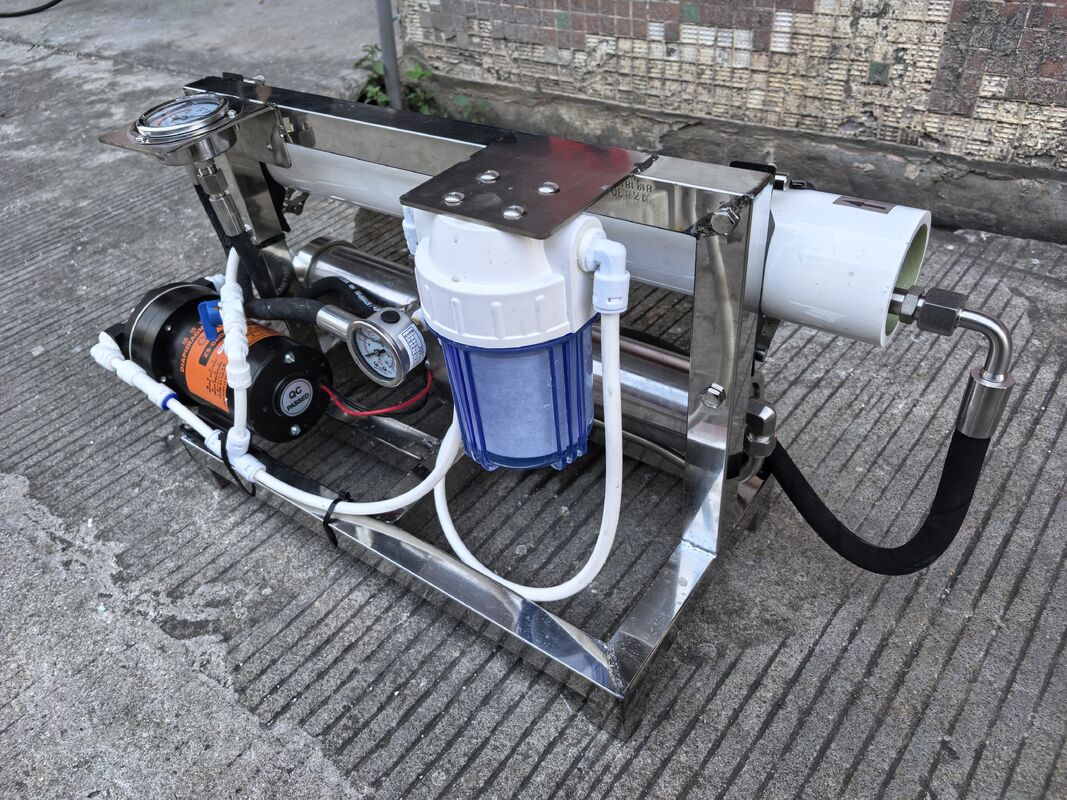

Yacht 24V Seawater Desalination Unit

The Yacht 24V Seawater Desalination Unit is a premium solution for environmentally friendly yachts, enabling efficient production of fresh drinking water from seawater. This system utilizes advanced reverse osmosis membrane technology to purify seawater, reducing reliance on bottled water reserves and minimizing plastic waste while enhancing onboard self-sufficiency.

With over 2 billion people worldwide facing freshwater scarcity—particularly in island nations, saline regions, ocean-going vessels, and offshore platforms—our desalination units provide reliable drinking water solutions for marine applications and water-scarce environments.

Technical Specifications

Product Model	JC-0.5T/D
Water Quality	Complies with drinking water standard GB5749-2022
Water Production	500 litres/hour*
Power Consumption	0.3KW
Desalination Rate	>99.5%
Power Supply	AC24V-220V / 50Hz /60HZ
Produced Water Salinity	<700mg/L
Electrical Protection Grade	IP54
System Recovery Rate	25% (depending on temperature and water quality)
Dimensions (L×W×H)	800×400×300 mm
Operating Pressure	<6.5Mpa
Net Weight	30Kg
Reverse Osmosis Membrane	RO membrane shell
Material Composition	SUS316 stainless steel

*Water production measured at 25°C water temperature, 35,000mg/L salt content, and 5Mpa operating pressure.

System Features & Protection

High Pressure Protection: Automatic shutdown with sound/light alarm when pump pressure exceeds 6.2MPa
Low Pressure Protection: Automatic shutdown with alarm when inlet pressure drops below 0.05MPa
Manual Multi-way Valve: Enables multi-media filter cleaning when differential pressure reaches 0.1MPa
RO Membrane Cleaning System: Supports physical cleaning, chemical cleaning, and protective fluid refilling

Premium Components

Inlet Pump: SUS316 stainless steel construction
Multi-media Filter: Ø100 FRP material
Security Filter: 5' x 5μm, UPVC
Precision Filter: 5' x 5μm, UPVC
High Pressure Pump: Imported AR brand (Italy) / South pump (CNP)
Reverse Osmosis Membrane: LG / U.S. Dow / Toray / Hydrogen seawater membrane
Membrane Shell: Chengda sea (FirstLine) FRP material
Cleaning Tank: PE material
Electrical Components: Schneider brand
Conductivity Meter: Kreda brand

Package Contents

Water treatment equipment unit
Product operating instructions and instructional video
Completion documentation (product certification, factory test report, packaging list)
Additional consumables and accessories

Customization Available: Equipment can be customized according to specific customer requirements.

Consultation Required: Due to the specialized nature of this product, please contact our customer service team before purchasing. Our specialists will assess your water consumption needs and water quality requirements to recommend the optimal solution. For detailed specifications, technical drawings, or additional information, please reach out to our support team for personalized assistance.
