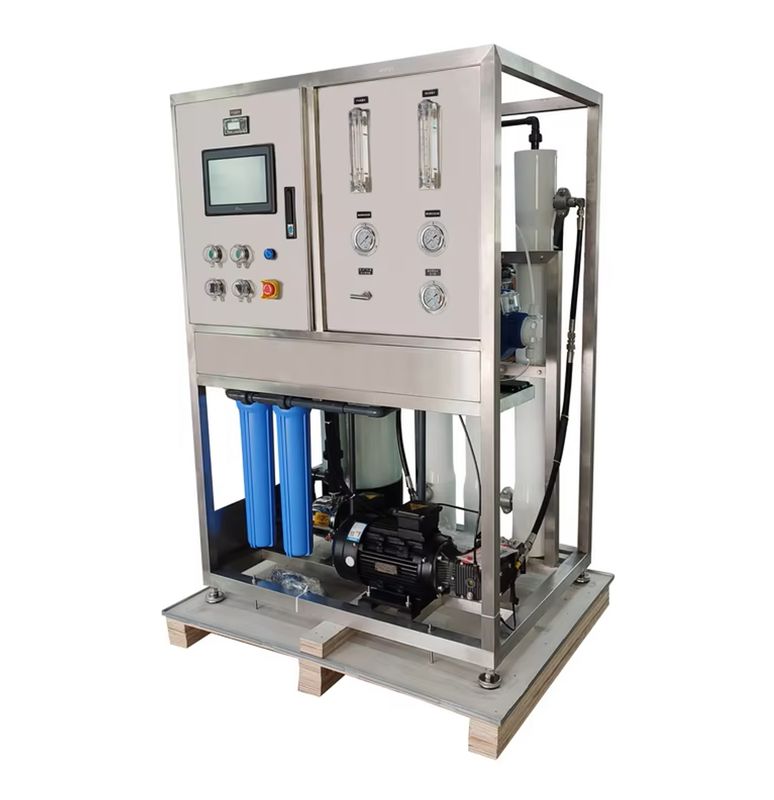

Island Water Desalination Plant - Jingchuang China

Island Water Desalination Plant - Jingchuang China

Brand Name:	nettronics
Model Number:	JCSWRO15T/D
MOQ:	1
Price:	liaise
Payment Terms:	T/T
Supply Ability:	liaise

Detail Information

Product Description

Detail Information

Place of Origin:

sino

Certification:

Treatment Process:

Physical And Chemical Treatment

Frequency:

50/60Hz

Disinfection Method:

Chlorination

Voltage:

380V/440V

Power Source:

Electric

Treatment Level:

Secondary Treatment

Material:

Stainless Steel

Capacity:

100 Gallons Per Hour

Application:

Industrial Process Water Treatment

Installation:

Under Sink

Dimensions:

1280 X 600 X 1700 Mm

Purification Technology:

Reverse Osmosis

Weight:

50 Lbs

Operation Mode:

Automatic

Power Supply:

380V/50Hz

Water Source:

Sea Water

Purification Capacity:

625L/h

Display:

Touch Screen

Membrane Material:

Polyamide

Pretreatment System:

Multi-media Filter, Activated Carbon Filter

Operating Pressure:

800-1200 Psi

Membrane Type:

Reverse Osmosis

Membrane:

Reverse Osmosis(RO)

Included Components:

Pre-filter, Post-filter, Faucet

Type:

Reverse Osmosis

Color:

White/Blue/Stainless Steel

Function:

Drinking Water, Industrial Water, Etc.

Port:

Ningbo

Filtration Level:

Deionization

Purification Method:

Reverse Osmosis

Product Type:

Water Purification System

Post-Filtration:

Carbon Filter

Packaging Details:

export wooden box

Highlight:

yacht desalinator with warranty

island water desalination plant

marine desalinator for yachts

Product Description

Island Water Desalination Plant - Jingchuang China

Commercial seawater desalination system designed for reliable operation in island environments. Model JC-15T delivers 15 tons per day with 5.5kW power consumption.

Key Features

Inlet water salinity ≤ 40,000 ppm
Outlet water meets GB5749-06 Class I standards
High-efficiency reverse osmosis technology
Stainless steel 316 construction for marine environments
Comprehensive monitoring and control systems

Main Equipment Configuration

Component	Specifications	Quantity	Origin/Material
Raw Water Pump	1500W	1 set	Guangdong stainless steel
Sand Filter	300x1500	1 set	Guangdong Glass-Fibre Reinforced Plastic
Fine Filter System	20" housing with 5μ & 3μ filter elements	2 units	China/Dongguan Fibre
Motor	4000W	1 set	China
MD High-Pressure Pump	P316, 30 L/min, 140 bar	1 set	Imported
Reverse Osmosis System	40" membranes, 4" x 3 sections	3 units	Huitong/Glass fibre reinforced plastic
Monitoring Instruments	Pressure gauges, flow meters, conductivity meter	Multiple	Zhejiang/Chinese marine grade
Frame Structure	316 Stainless Steel	1 unit	Marine grade

Technical Parameters

Water Production: 15T/D (20°C)

Inlet Water Salinity: ≤40,000 mg/L

Inlet Water Temperature: 5~36°C

Inlet Water Flow Rate: 2 m³/h

Effluent Salinity: ≤700 mg/L

System Desalination Rate: ≥99.3%

System Recovery Rate: ≈20-25%

Power Supply: AC 220-440V, 60 Hz/3-phase

Installed Capacity: ≈5.5 kW (main unit)

Dimensions: 1,300 × 900 × 1,650 mm

Weight: ≈580 kg (net weight)

Important Note: Due to the specialized nature of water desalination systems, please contact our customer service before purchasing. Our team will assess your specific water consumption and quality requirements to recommend the most suitable equipment. This ensures optimal performance and avoids unnecessary complications. For detailed specifications, technical drawings, or additional information, please reach out to our customer service department.
