Shipboard Water Purification System

Shipboard Water Purification System

Brand Name:	nettronics
Model Number:	JC-15T/D
MOQ:	1
Price:	liaise
Payment Terms:	T/T
Supply Ability:	liaise

Detail Information

Product Description

Detail Information

Place of Origin:

sino

Certification:

Product Model:

JC-ZD-15T/D

Water Yield:

15000L/D

Desalination:

>99.5%

Salinity Of Produced Water:

<700mg/L

Water Quality:

Conforms To Drinking Water Quality Standard GB5749-2022

Applied Power:

5 Kw

Power Supply:

AC220V-380V / 50-60Hz

Protection Class Of Electric Control:

IP54

Overall Dimensions:

1300*800*1750 Mm

Net Weight:

480Kg

How To Operate The Equipment:

Fully Automatic

Packaging Details:

Export Wooden Box

Highlight:

marine water purification system

shipboard desalination watermaker

compact watermaker for boats

Product Description

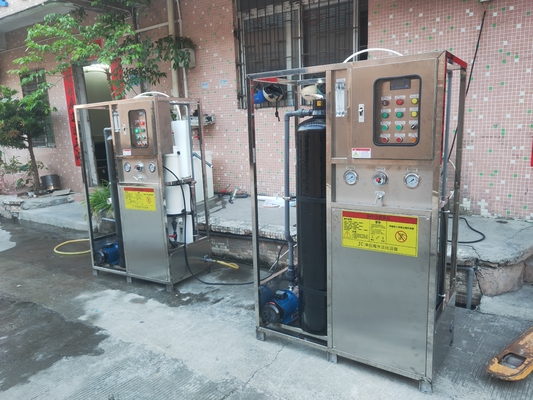

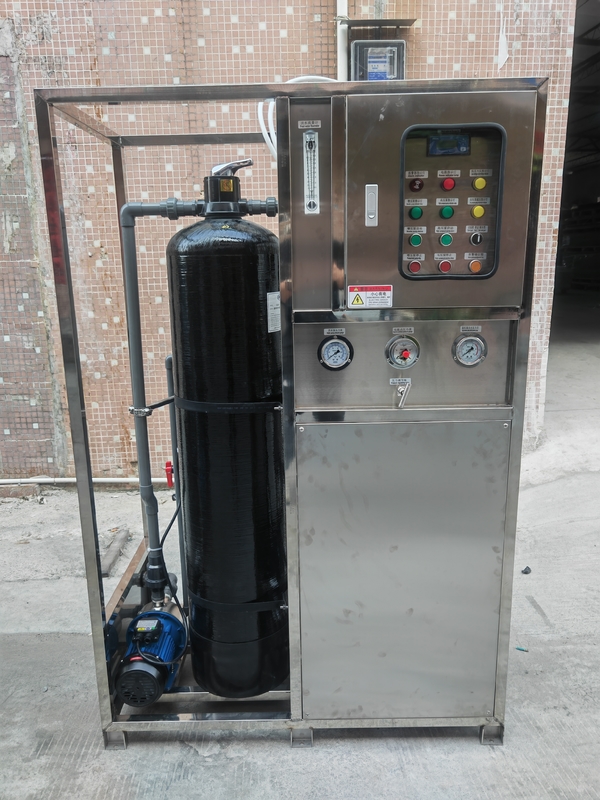

Shipboard Water Purification System

Advanced desalination system designed for shipboard and island applications, producing high-quality drinking water that meets GB5749-2022 national standards.

Key Specifications

Product Model	JC-15T/D
Water Production Rate	625 litres per hour (15 tonnes daily)
Power Consumption	5 kilowatts
Seawater Desalination Efficiency	>99.5%
Power Supply	AC 220V-380V / 50Hz / Single-phase and three-phase customizable
Product Water Conductivity	<700 milligrams per litre
Electrical Control Protection Rating	IP54
System Recovery Rate	10-30% (depending on temperature and water quality)
Dimensions	1300 x 800 x 1750 millimetres
Operating Pressure	<6.5 MPa
Net Weight	480 kilograms

System Protection Features

High-pressure unloading: Automatic shutdown and alarm when water pressure exceeds 6.2 MPa
Low-pressure shutdown protection: Automatic shutdown and alarm when inlet pressure drops below 0.05 MPa
Reverse osmosis membrane cleaning system: Configurable for physical cleaning, chemical cleaning, and protective fluid rinsing

Main Components

Inlet pump: SUS316 stainless steel
Safety filter: 20' x 5μm, UPVC
Fine filter: 20' x 5μm, UPVC
High-pressure pump: Italian-imported AR brand
Reverse osmosis membrane: LG / TS
Membrane housing: FRP material
Cleaning tank: 20L capacity
Chemical cleaning device: System-matched
Electrical components: Schneider brand or equivalent
Conductivity meter: Kreida brand

Application Scenarios

Ideal for small rural communities, guesthouses, hotels, ships, factories, construction sites, coastal areas, offshore platforms, remote islands, emergency rescue, and disaster response situations.

Technology Overview

Utilizes advanced reverse osmosis (RO) technology to effectively remove salts and impurities, transforming seawater into clean, safe drinking water. The portable design enables rapid deployment in various environments.

Factory Equipment List

Water treatment equipment
Product user manual and usage video
Completion documents (product conformity certificate, factory test report, packing list)
Other consumables and accessories

Professional Consultation Required: Due to the specialized nature of this equipment, we recommend contacting our customer service team before purchase. We will recommend suitable products based on your specific water usage needs and water quality requirements. Please provide details about your application for proper system specification.
