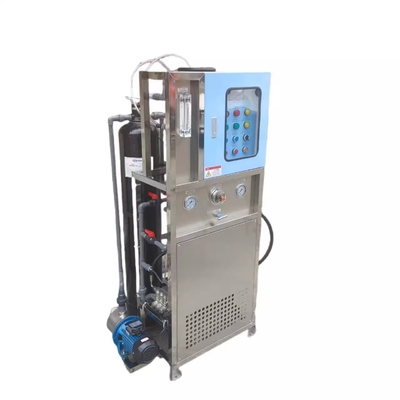

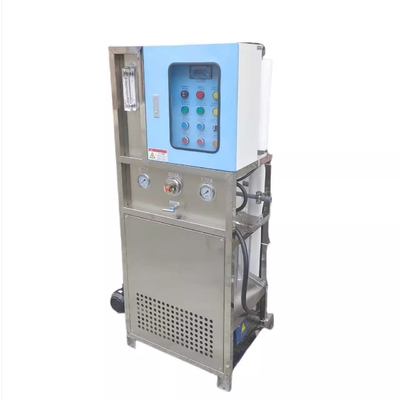

5,000-Litre Solar Seawater Desalination Unit

Name: 5,000-Litre Solar Seawater Desalination Unit
Brand: Dongguan Jingchuang Environmental Protection Equipment Co.
SKU: JC-5T/D
Availability: InStock

Brand Name:	nettronics
Model Number:	JC-5T/D
MOQ:	1
Price:	liaise
Payment Terms:	T/T
Supply Ability:	liaise

Detail Information

Product Description

Detail Information

Place of Origin:

sino

Certification:

Product Model:

JC-ZD-5T/D

Water Yield:

5000L/D

Desalination:

>99.5%

Salinity Of Produced Water:

<700mg/L

Water Quality:

Conforms To Drinking Water Quality Standard GB5749-2022

Applied Power:

2.3 Kw

Power Supply:

AC220V-380V / 50-60Hz

Protection Class Of Electric Control:

IP54

Overall Dimensions:

1100*600*1650 Mm

Net Weight:

280Kg

How To Operate The Equipment:

Fully Automatic

Packaging Details:

Export Wooden Box

Highlight:

5000-litre solar desalination unit

seawater desalination watermaker

solar-powered watermaker with warranty

Product Description

5,000-Litre Solar Seawater Desalination Unit

Desalination Device For Shipboard Boilers - Model JC-5T/D

Product Specifications

Water Production Rate	625 litres per hour
Daily Water Production	5,000 litres (5 tonnes)
Power Consumption	2.3 kilowatts
Seawater Desalination Efficiency	>99.5%
Power Supply	AC 220V-380-440V / 50-60Hz / Single-phase and three-phase customizable
Product Water Conductivity	<700 milligrams per litre
Electrical Control Protection Rating	IP54
System Recovery Rate	10-30% (depending on temperature and water quality)
Dimensions	1100 x 600 x 1650 millimetres
Operating Pressure	<6.5 MPa
Net Weight	280 kilograms
Reverse Osmosis Membranes	2 pieces x 2 pieces 4040
Material Composition	SUS316 stainless steel

System Functions

High-pressure unloading: Automatic shutdown protection with audible and visual alarm when water pressure exceeds 6.2 MPa
Low-pressure shutdown protection: Automatic shutdown with alarm when inlet pressure drops below 0.05 MPa
Reverse osmosis membrane cleaning system: Configurable for physical cleaning, chemical cleaning, and protective fluid rinsing

Main Components

Inlet pump: SUS316
Safety filter: 20' x 5μm
Fine filter: 20' x 5μm, UPVC
High-pressure pump: Italian-imported AR brand
Reverse osmosis membrane: LG / TS
Membrane housing: FRP material
Cleaning tank: 20L
Chemical cleaning device: System-matched
Electrical components: Schneider brand or equivalent
Conductivity meter: Kreida

Application Scenarios

This compact desalination unit is ideal for small rural communities, guesthouses, hotels, ships, factories, construction sites, coastal areas, offshore platforms, remote islands, emergency rescue, and disaster response situations.

Technical Features

Utilizes advanced reverse osmosis (RO) technology to effectively separate salts and impurities through a semi-permeable membrane under pressure, meeting national drinking water quality standard GB5749-2022.

Complete Equipment Package

Water treatment equipment
Product user manual and usage video
Completion documents (product conformity certificate, factory test report, packing list)
Other consumables and accessories

Professional Consultation Required: Due to the specialized nature of this product, we recommend contacting our customer service team before purchase. Our experts will recommend suitable products based on your specific water usage needs and water quality requirements. Please contact us for technical specifications, parameters, or professional troubleshooting assistance.
