products details

Home Products

Marine Seawater Cooling And Refrigeration Systems

Brand Name:	Net Creation
Model Number:	JC-5000L37
MOQ:	1
Price:	communicate
Payment Terms:	T/T
Supply Ability:	1000 units per day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Packaging Details:

communicate

Highlight:

marine seawater cooling system

marine refrigeration system

marine watermaker cooling unit

Product Description

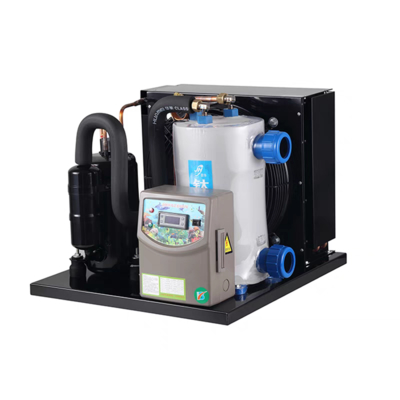

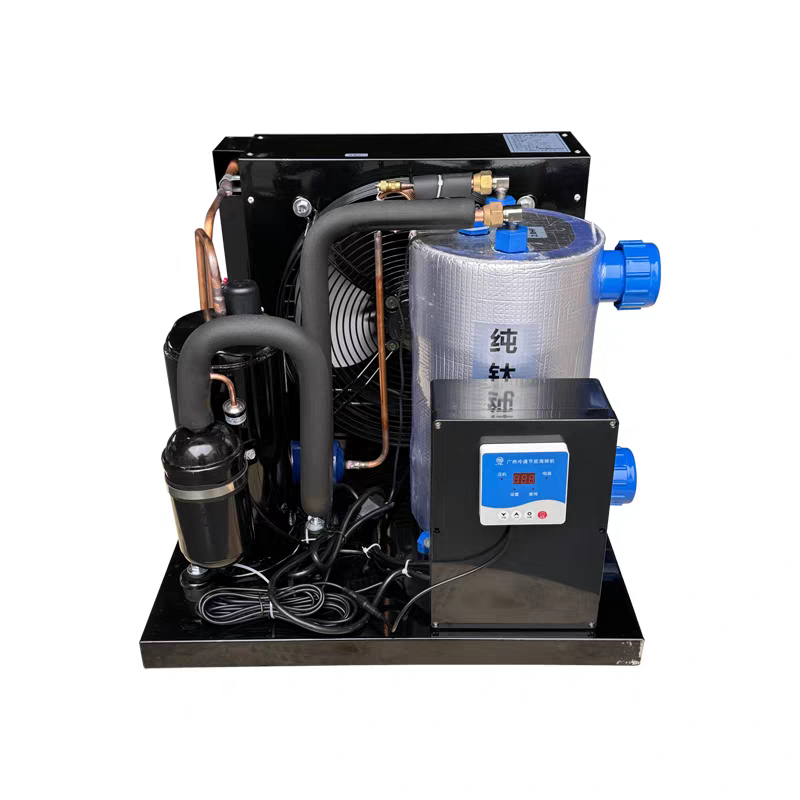

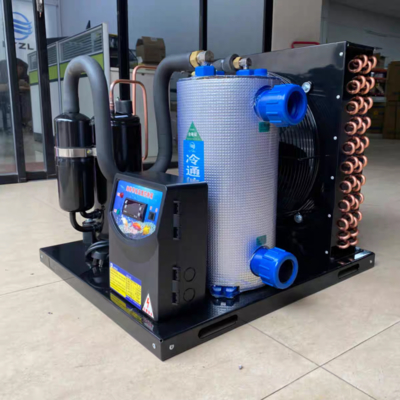

Marine Seawater Cooling And Refrigeration Systems

Advanced marine cooling and refrigeration solutions designed for aquaculture, vessel operations, and industrial applications with precision temperature control and corrosion-resistant construction.

Core Specifications

Cooling Capacity Range: Commercial models from 1 HP (approx. 2427W) to 5 HP (12kW+) for marine aquaculture and fishing operations
Industrial Models: Air-cooled twin-screw units with capacities up to hundreds of kilowatts for large-scale seawater cooling systems
Temperature Control Accuracy: ±1°C for aquaculture (e.g., oyster farming requires 10-25°C maintenance)
Marine Aquarium Cooling: ±0.5°C precision (recommended 24-26°C range)
Corrosion-Resistant Design: Pure titanium or stainless steel evaporators (e.g., Sensen UA-2.8DR model)
Secondary Coolant: Seawater or brine (calcium chloride solution suitable for -40°C to 5°C)
Energy Efficiency: Complies with GB/T18430.1 standards; certain models achieve COP (Coefficient of Performance) exceeding 3.5

Operating Principle

Heat Pump Technology: Utilizes four-component cycle (compressor, condenser, expansion valve, evaporator) to transfer heat via seawater temperature differentials
Seawater Integration: Seawater serves as heat source/sink, interacting with refrigerant through heat exchangers to achieve cooling or heating
Aquaculture Applications: Built-in pump draws seawater → chiller cools → returns to aquaculture tanks, forming closed-loop circulation
Industrial Capabilities: Industrial models handle -30°C brine for seafood rapid freezing
Aquarium Process: Circulation pump feeds seawater into chiller tank → Compressor cools → Returned to main tank after cooling
Efficiency Optimization: Recommended temperature differential of 2°C (e.g., start at 28°C, stop at 26°C) to minimize energy consumption

Model Comparison

Type	Application	Features	Reference Model
Seawater Heat Pump Air Conditioner	Building Cooling/Heating	Energy-efficient, high COP	Haier HCQ-185G
Industrial Chiller	Aquaculture/Processing	Corrosion-resistant titanium tubing, -30°C low-temperature capability	Ferguson marine flake ice machine
Commercial Chiller	Seafood Holding/Retail	1-5 HP, intelligent temperature control	Sensen UA-2.8DR

Technical Extensions

Reverse Flushing Function: Some industrial units support seawater reverse flow for heat exchanger cleaning (e.g., 'Yukun' vessel system)
Environmentally Friendly Refrigerants: R404A/R507 replace traditional R22, reducing ozone layer depletion

For detailed specifications or installation standards of specific models, please provide further application requirements.
