Specifications
Highlight:
99.5% Efficiency Seawater Desalination Unit
,Compact Portable Seawater Desalination Unit
,Mobile Seawater Desalination Unit
Product Model:
JC-ZD2T/D
water yield:
2000L/D
desalination:
>99.5%
Salinity of produced water:
<700mg/L
Water quality:
Conforms To Drinking Water Quality Standard GB5749-2022
applied power:
1.8kw
power supply:
AC220V-380V / 50-60Hz
Protection class of electric control:
IP54
Overall dimensions:
800*600*600 Mm
net weight:
80Kg
How to operate the equipment:
Fully Automatic
Key Attributes
Brand Name:
nettronics
Model Number:
JC-2T/D
Place of Origin:
sino
Certification:
EC
Minimum Order Quantity:
1
Price:
liaise
Supply Ability:
liaise
Delivery Time:
7-10working days
Payment Terms:
T/T
Standard Packaging:
Export Wooden Box
Product Description

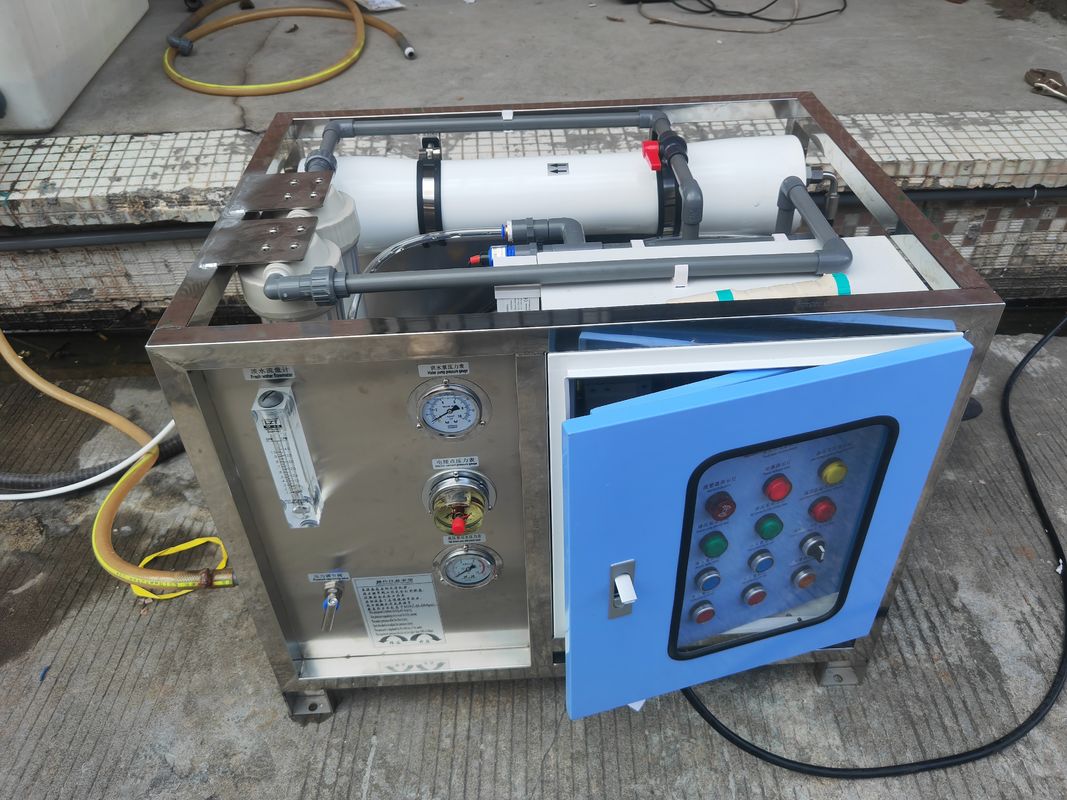

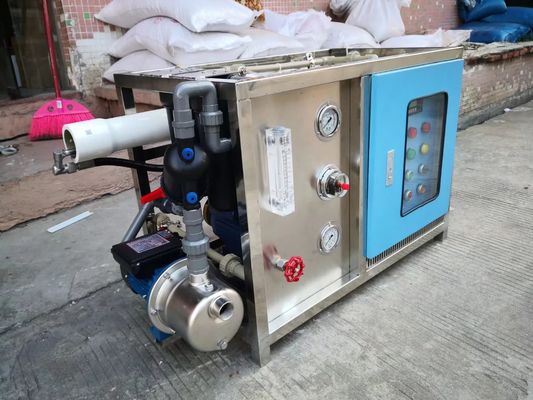

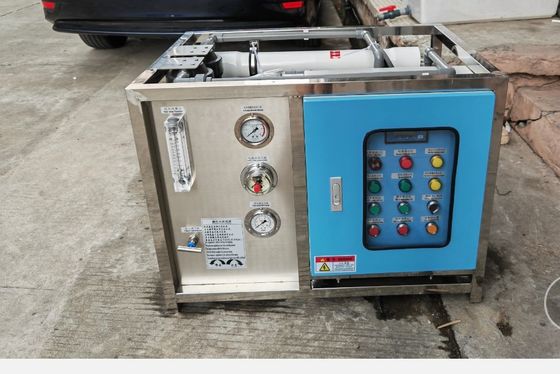

Portable Compact Mobile Seawater Desalination Unit
Model: JC-2T/D | Desalination Efficiency: 99.5%
Product Overview
Compact mobile seawater desalination system designed for civilian small-scale brackish water purification. Produces desalinated water meeting national drinking water quality standard GB5749-2022.
Key Specifications
| Water Production Capacity | 42 litres per hour (1,000 litres daily) |
| Power Consumption | 1.87 kW (1,800 watts) |
| Desalination Rate | >99.5% |
| Power Supply | AC 220V - 380V / 50 Hz (Single-phase and three-phase customizable) |
| Produced Water Salinity | <700 mg/L |
| Operating Pressure | <6.5 MPa |
| System Recovery Rate | 10% (depending on temperature and water quality) |
| Dimensions | 800 x 600 x 600 mm |
| Net Weight | 80 kg |
| Electrical Control Protection | IP54 |
System Protection Features
- High-pressure unloading: Automatic shutdown and alarm when pressure exceeds 6.2 MPa
- Low-pressure shutdown protection: Automatic shutdown and alarm when inlet pressure drops below 0.05 MPa
- Reverse osmosis membrane cleaning system for physical and chemical cleaning
Main Components
- Feed Pump: SUS304 stainless steel
- Safety Filter: 10' x 10μm, UPVC
- Precision Filter: 10' x 5μm, UPVC
- High-pressure Pump: Italian-imported AR brand
- Reverse Osmosis Membrane: LG / TS / Hydrogen
- Membrane Housing: FRP material (FirstLine)
- Cleaning Tank: 8L capacity
- Electrical Components: Schneider brand or equivalent
- Conductivity Meter: Kreida
Application Scenarios
Ideal for environments requiring portable freshwater solutions including ships, coastal areas, household use, offshore platforms, remote islands, emergency rescue, and disaster response.
Technical Features
Utilizes advanced reverse osmosis (RO) technology to separate salts and impurities through a semi-permeable membrane under pressure.
Factory Equipment Package
- Water Treatment Equipment
- Product User Manual and Usage Video
- Completion Documents (Certificate of Conformity, Factory Test Report, Packing List)
- Other Consumables and Accessories
Important Notice
Professional consultation required before purchase. Contact customer service for product recommendations based on your specific water usage and quality requirements. Do not purchase equipment blindly without professional guidance.
Dongguan Jingchuang Environmental Protection Equipment Co., Ltd. specializes in transforming seawater into clean, safe drinking water to address global water scarcity challenges.
