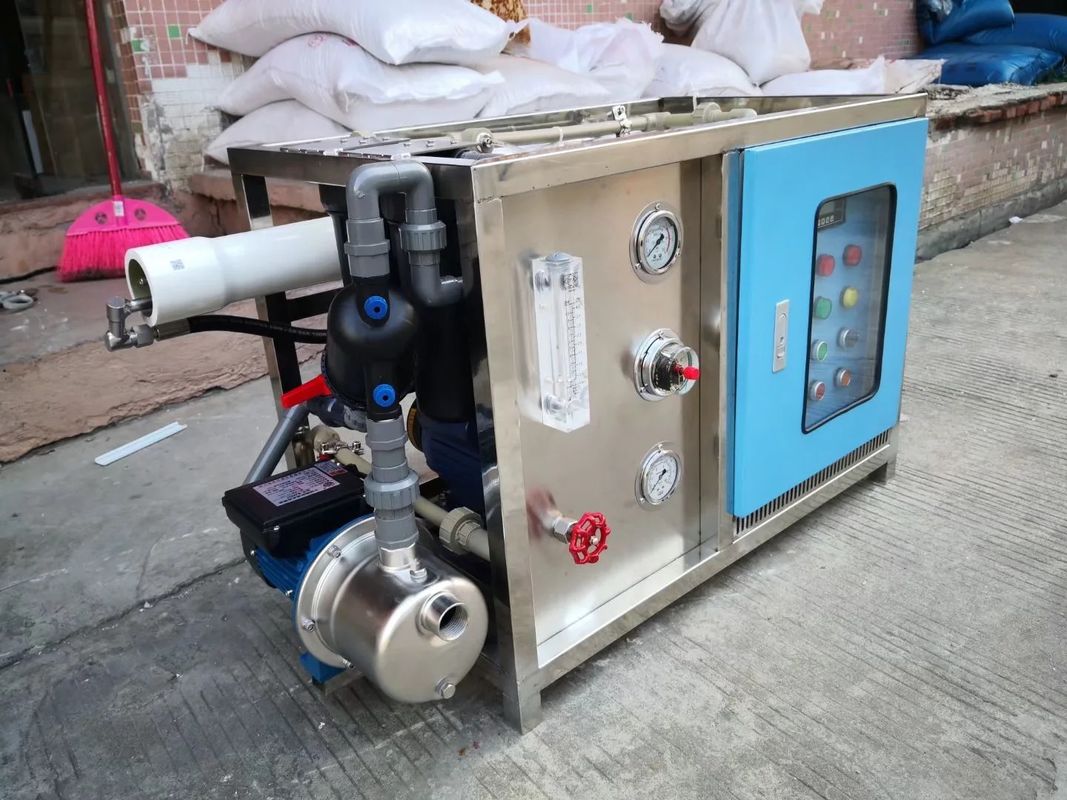

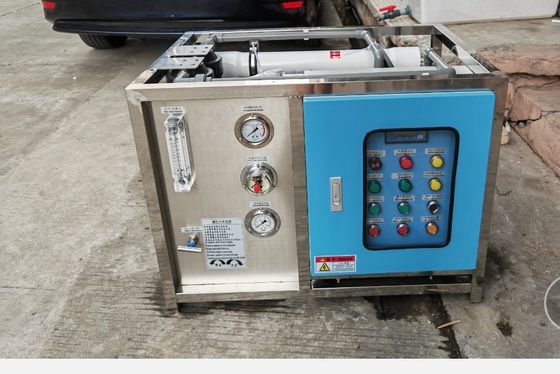

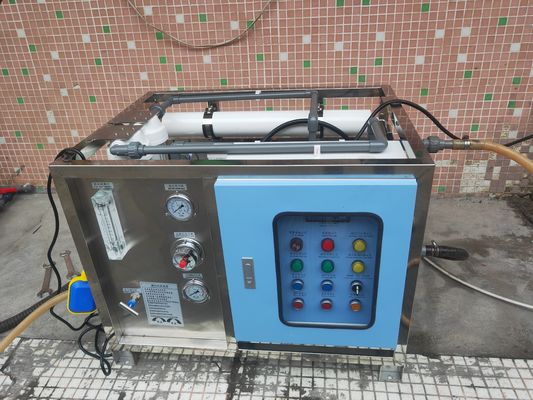

Civilian Small-Scale Brackish Water Purification System

Product Model: JC-1T/D

Produced desalinated water quality meets the national standard for drinking water quality GB5749-2022

Water production

capacity: 42 litres per hour Power: 1.87 kW Seawater desalination rate: >99.5% Power supply: AC 220V - 380V / 50 Hz / Single-phase and three-phase customizable Produced Water Salinity: <700 mg/L Electrical Control Protection Rating: IP54 System Recovery Rate: 10% (depending on temperature and water quality) Dimensions: 800 x 600 x 600 mm Operating Pressure: <6.5 MPa Net Weight: 80 kg Reverse Osmosis Membrane & Membrane Housing: 1 pc x 1 pc Material composition: SUS316 stainless steel System functions

1. High-pressure unloading: When the high-pressure pump water pressure exceeds 6.2 MPa, the equipment will automatically shut down for protection and emit an audible and visual alarm.

2. Low-pressure shutdown protection: When the pre-treatment water supply is insufficient, causing the high-pressure pump inlet pressure to be less than 0.05 MPa, the equipment will automatically shut down for protection and emit an audible and visual alarm.

3. The reverse osmosis membrane cleaning system can be configured for physical cleaning, chemical cleaning, and refilling the reverse osmosis membrane assembly with protective fluid. Main Components Feed Pump: SUS304 Safety filter: 10' x 10μm, UPVC Precision filter: 10' x 5μm, UPVC High-pressure pump: Italian-imported AR brand Reverse osmosis membrane: LG / TS / Hydrogen Membrane housing: (FirstLine) FRP material Cleaning tank: 8L Chemical cleaning device: System-matched Electrical components: Schneider brand or equivalent. Conductivity Meter: Kreida. Factory Equipment List

1. Water Treatment Equipment

2. Product User Manual, Usage Video*

3. Completion Documents (Product Certificate of Conformity, Factory Test Report, Packing List)

4. Other Consumables and Accessories

The following is information about the portable seawater desalination unit:
1. Daily water production: This unit can provide up to 1 tonne of freshwater per day, equivalent to 1,000 litres, sufficient to meet the freshwater needs of a small family or small vessel.
2. Energy consumption: It has a power rating of 1,800 watts, meaning it is relatively energy-efficient during operation, which is an advantage for users who need to use it in environments with limited energy resources.
3. Power compatibility: The device is designed to accommodate power sources ranging from 220 to 380 volts, offering flexibility and enabling it to operate in various power environments.
4. Physical dimensions: The device measures 800 millimetres in length, 600 millimetres in width, and 600 millimetres in height, indicating it is a compact unit that is easy to move and suitable for installation in limited spaces.
5. Application Scenarios: This device is particularly suitable for environments requiring portable freshwater solutions, such as ships, coastal areas, household daily water use, offshore platforms, remote islands, emergency rescue, or disaster response.
6. Technical Features: Although you have not provided specific technical details, this type of device typically uses reverse osmosis (RO) technology, which is a process that separates salts and other impurities by forcing water molecules through a semi-permeable membrane under pressure.
7. Convenience: The portable design allows for quick deployment, which is particularly useful in emergency situations or mobile work environments requiring rapid response. If you require further analysis or have additional questions, such as equipment maintenance, cost-benefit analysis, or market comparisons, please contact us for discussion.

Introduction:
In today's world of increasingly scarce water resources, Dongguan Jingchuang Environmental Protection Equipment Co., Ltd. is dedicated to transforming the vast oceans into a source of life, providing clean and safe drinking water to the world.

Seawater Desalination Equipment Ship Island Filtration Drinking Water Purifier Subsea Water Filtration System

Commercial seawater RO membrane filtration water treatment plants are used to remove salts and purify water. The system consists of a booster pump, FRP/carbon steel pre-treatment tanks (sand filters, activated carbon filters), cartridge filter housings, chemical dosing systems, high-pressure pumps, FRP membrane pressure vessels, 2540 or 4040 membranes, control panels, and touchscreen controls.
Materials and component brands can be modified based on raw water quality and customer requirements.

Note: Due to the special nature of the product, professional consultation is required before purchase. Please contact customer service, who will recommend suitable products based on the customer's water usage and water quality issues. To avoid unnecessary complications in the future, please do not purchase equipment blindly. If you require specific technical specifications, parameters, or images for professional troubleshooting, please contact customer service. We will address your professional inquiries. Thank you for your support of Jingchuang Environmental Protection Experts. Thank you!
