Specifications
Highlight:
99.5% Desalination Efficiency Desalination Units
,Fully Automatic Desalination Units
,Easy Operate Desalination Units
Product Model:
JC-ZD3T/D
water yield:
3000L/D
desalination:
>99.5%
Salinity of produced water:
<700mg/L
Water quality:
Conforms To Drinking Water Quality Standard GB5749-2022
applied power:
2.55kw
power supply:
AC220V-380V / 50-60Hz
Protection class of electric control:
IP54
Overall dimensions:
700*600*1600 Mm
net weight:
180Kg
How to operate the equipment:
Fully Automatic
Key Attributes
Brand Name:
nettronics
Model Number:
JC-3T/D
Place of Origin:
sino
Certification:
EC
Minimum Order Quantity:
1
Price:
liaise
Supply Ability:
liaise
Delivery Time:
7-10working days
Payment Terms:
T/T
Standard Packaging:
Export Wooden Box
Product Description

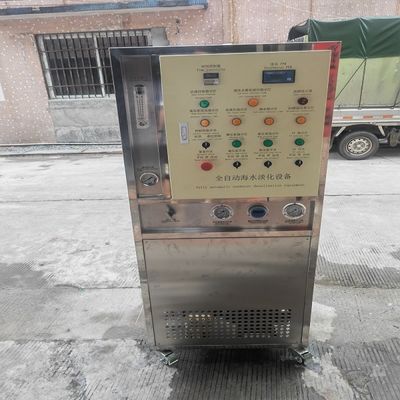

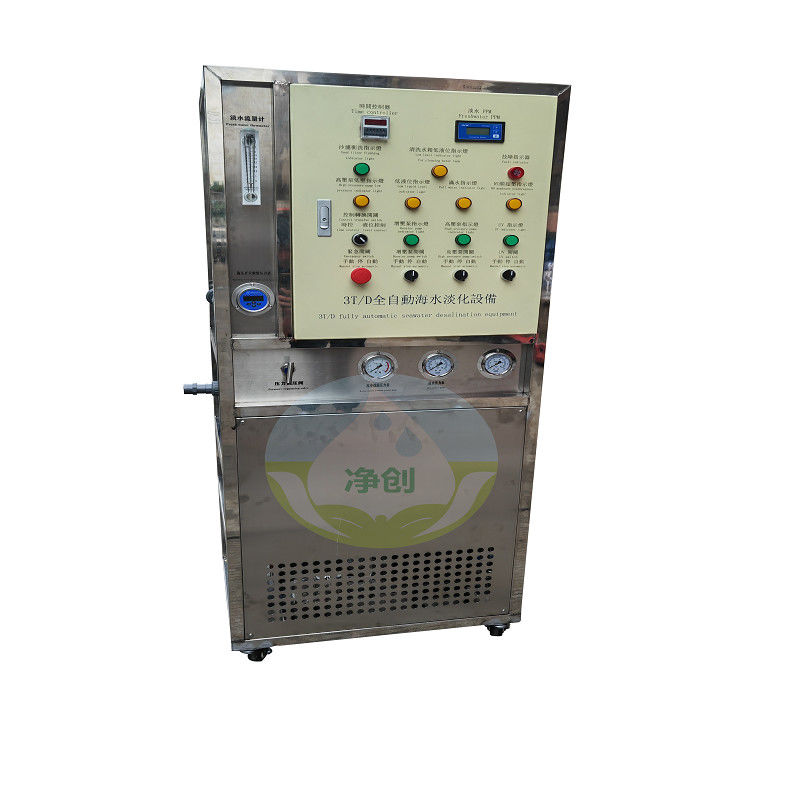

Fully Automatic Desalination Units - Easy Operation with 99.5% Desalination Efficiency
Nettronics Environmental Protection Company introduces advanced fully automatic desalination filtration technology featuring automated startup, shutdown, adjustment, and cleaning operations. This innovative system eliminates manual intervention, providing energy-efficient and time-saving operation for various applications including ships, sea islands, and brackish groundwater treatment.
The system utilizes programmable logic controllers, pipeline electric valves, and parallel-connected regulators for fully automated operation. Designed specifically for reverse osmosis desalination applications, this technology represents a significant advancement in water treatment automation.
Advanced Reverse Osmosis Technology
Our ship desalination equipment employs cutting-edge reverse osmosis technology with optimized pretreatment systems including multi-media filters and activated carbon filters. The system effectively removes inorganic salts, heavy metal ions, organic compounds, bacteria, and pathogens from seawater.
Technical Specifications
| Product Model | JC-3T/D |
| Water Quality Standard | GB5749-2022 Drinking Water Standard |
| Water Production Capacity | 125 litres/hour |
| Power Consumption | 2.55KW |
| Desalination Rate | >99.5% |
| Power Supply | AC220V-380V / 50Hz / Three-phase |
| Produced Water Salinity | <700mg/L |
| Electronic Control Protection Level | IP54 |
| System Recovery Rate | 10% (depending on temperature and water quality) |
| Dimensions | 700×600×1600 mm |
| Operating Pressure | <6.5MPa |
| Net Weight | 180Kg |
| Reverse Osmosis Membrane & Shell | 1pcs×1pcs |
| Material Composition | SUS316 Stainless Steel |
System Protection Features
- High-Pressure Unloading: Automatic shutdown with sound and light alarms when high-pressure pump water pressure exceeds 6.2MPa
- Low-Pressure Shutdown Protection: Automatic shutdown with alarms when high-pressure pump inlet pressure falls below 0.05MPa due to insufficient pretreatment water supply
- Manual Multi-way Valve: Multi-media filter cleaning activated when differential pressure reaches 0.1MPa
- RO Membrane Cleaning System: Configurable for physical cleaning, chemical cleaning, and protective fluid refilling
Main System Components
- Inlet Pump: SUS304 stainless steel construction
- Multi-media Filter: Ø200×1100mm, FRP material
- Security Filter: 10' × 10μm, UPVC construction
- Precision Filter: 10' × 5μm, UPVC construction
- High Pressure Pump: Imported AR brand from Italy
- Reverse Osmosis Membrane: LG / TS / Hydrogen
- Membrane Housing: FirstLine FRP material
- Cleaning Tank: 8L capacity
- Chemical Cleaning Device: System-compatible unit
- Electrical Components: Schneider brand or equivalent
- Conductivity Meter: Kreida brand
Factory Equipment Package
- Complete water treatment equipment unit
- Product operation manual and instructional video
- Completion documentation (product certification, factory test report, packing list)
- Additional consumables and accessories
Important Note: Due to the specialized nature of our products, please contact our customer service team before purchasing. Our representatives will assess your specific water consumption requirements and water quality conditions to recommend the most suitable equipment. To avoid potential issues, we advise against purchasing equipment without proper consultation. For detailed specifications, technical parameters, or additional images, please contact our customer service department. Thank you for your interest in Nettronics Environmental Protection products!
