Specifications
Highlight:
10US Water Pure Water System
,Reverse Osmosis Pure Water System
,Groundwater Pure Water System
Water Quality:
10US
Voltage:
220V/380V
Warranty:
1 Year
Flow Rate:
Customisable
filtration rate:
99.5%
Material:
Ro
Application:
Electronic Chips, Semiconductors, Lenses, Glass Factory
Operational Runs:
Automation
Key Attributes
Brand Name:
Net Creation
Model Number:
JC-4T911/D
Place of Origin:
China
Certification:
CE
Minimum Order Quantity:
1
Price:
communicate
Supply Ability:
1000 units per day
Delivery Time:
communicate
Payment Terms:
T/T, T/T, T/T
Standard Packaging:
communicate
Product Description

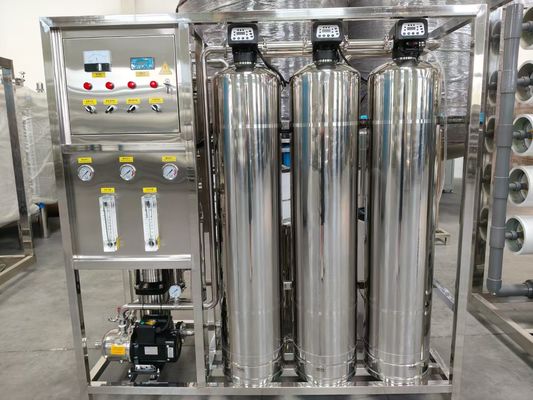

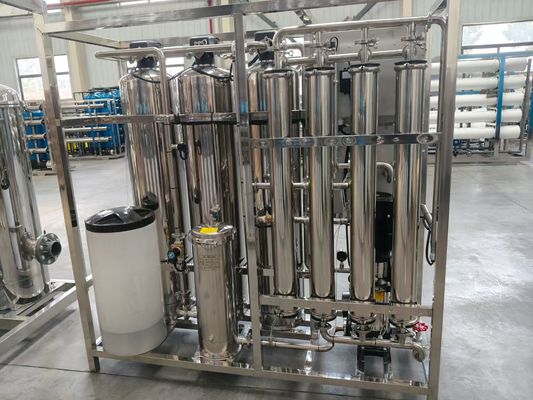

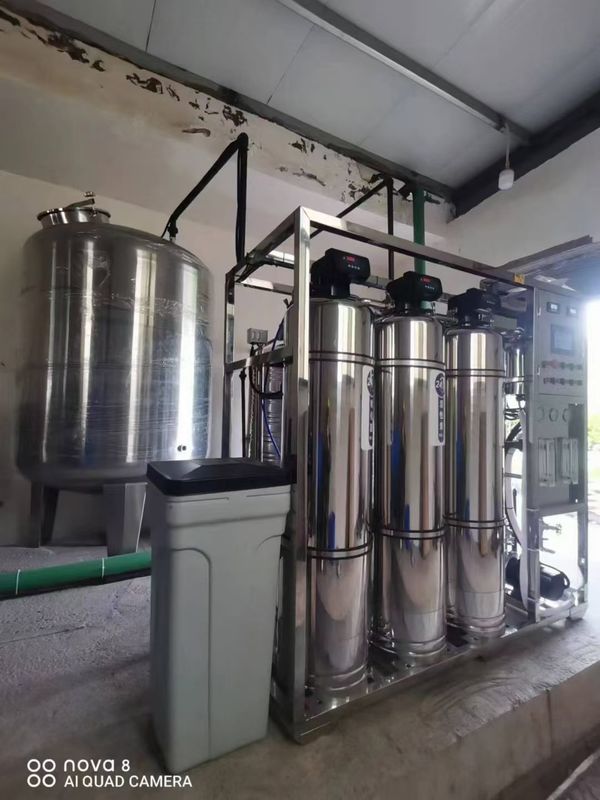

RO Groundwater Reverse Osmosis Pure Water System With 10US Water
This groundwater reverse osmosis system produces high-purity water for industrial applications with automated operation and advanced membrane technology.
System Specifications
Design Basis and Water Treatment Standards
| Parameter | Specification |
|---|---|
| Raw Water Source | Municipal tap water or groundwater |
| Product Water Application | Pure water |
| Product Water Flow Rate | 1 ton per hour |
| Raw Water Conductivity | ≤ 1000 μS |
| RO Product Water Conductivity | ≤ 10 μS |
| System Recovery Rate | ≥60% |
| Operating Mode | Automatic control operation |
Treatment Process Flow
Raw Water Tank → Raw Water Pump → Quartz Sand Filter → Activated Carbon Filter → Water Softening Filter → Precision Filter → High-Pressure Pump → Reverse Osmosis Pure Water System → Pure Water Tank → Pure Water Boosting Pump → Pure Water Usage Point
External Requirements
| Requirement | Specification |
|---|---|
| Water Source Flow Rate | 2 T/H |
| Water Temperature | 5-45°C |
| Raw Water Conductivity | ≤ 1000 μS/cm |
| Power Supply | 3 kW/220 V/50 Hz |
| Drainage Capacity | 2 tonnes per hour |
Equipment must be installed indoors with adequate ventilation, lighting, maintenance space, and protection from direct sunlight, acid, alkali, and dust.
Reverse Osmosis Technology
Reverse osmosis is a membrane separation technology that uses pressure to force water molecules through a semi-permeable membrane while rejecting dissolved salts and impurities. This process effectively removes contaminants to produce high-purity water.
Key Features
- Fully automated control system with imported main components for high stability
- Automatic shutdown and protection functions in case of failure
- Composite membrane modules with high solute separation and transmission rates
- Low energy consumption and high water utilization for reduced operating costs
- Compact, space-efficient design
- Advanced membrane protection with automatic cleaning to extend membrane life
- Minimal maintenance requirements with no wearing parts
- CIP membrane cleaning system
- French Schneider electrical components for reliable performance
- Optional remote monitoring system for real-time operation observation
Important Note: Due to the specialized nature of this equipment, please contact our customer service before purchasing. Our team will assess your specific water consumption and quality requirements to recommend the most suitable system. For detailed specifications, parameters, or additional images, please contact our customer service representatives who will be happy to assist you.
