230Kg Two Stage Freshwater System For Fishing Boats Conforms To GB5749-2022 Drinking Water Standard

230Kg Two Stage Freshwater System For Fishing Boats Conforms To GB5749-2022 Drinking Water Standard

Brand Name:	nettronics
Model Number:	JC-3T/D
MOQ:	1
Price:	liaise
Payment Terms:	T/T
Supply Ability:	liaise

Detail Information

Product Description

Detail Information

Place of Origin:

sino

Certification:

Product Model:

JC-ZD-3T/D

Water Yield:

3000L/D

Desalination:

>99.5%

Salinity Of Produced Water:

<700mg/L

Water Quality:

Conforms To Drinking Water Quality Standard GB5749-2022

Applied Power:

2kw

Power Supply:

AC220V-380V / 50-60Hz

Protection Class Of Electric Control:

IP54

Overall Dimensions:

750*600*1600 Mm

Net Weight:

230Kg

How To Operate The Equipment:

Fully Automatic

Packaging Details:

Export Wooden Box

Highlight:

GB5749-2022 Freshwater System

Drinking Water Freshwater System

Two Stage Freshwater System

Product Description

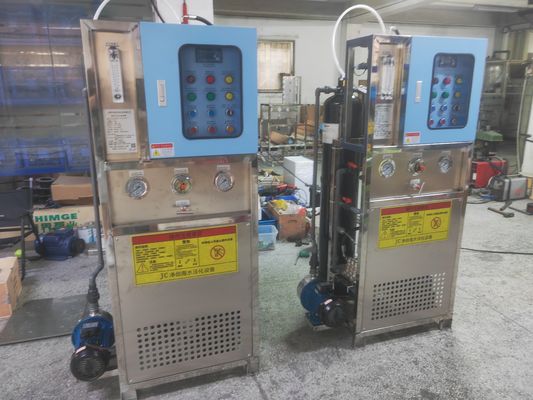

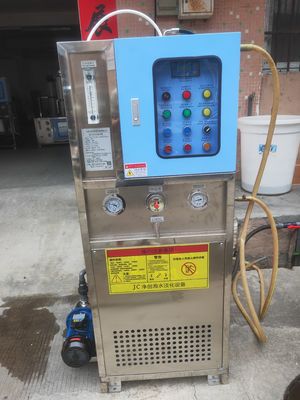

230Kg Two Stage Freshwater System For Fishing Boats

Conforms to GB5749-2022 Drinking Water Standard

Product Overview

Two-Stage Freshwater System designed specifically for fishing boats, producing high-quality desalinated water that meets national drinking water standards.

Technical Specifications

Product Model	JC-3T/D
Water Production Rate	625 litres per hour
Daily Water Production	3,000 litres (3 tonnes)
Power Consumption	2 kilowatts
Seawater Desalination Efficiency	>99.5%
Power Supply	AC 220V-380V / 50Hz / Single-phase and three-phase customizable
Product Water Conductivity	<700 milligrams per litre
Electrical Control Protection Rating	IP54
System Recovery Rate	10-30% (depending on temperature and water quality)
Dimensions	750 x 600 x 1600 millimetres
Operating Pressure	<6.5 MPa
Net Weight	230 kilograms
Reverse Osmosis Membranes	1 x 4040 membrane with FRP housing
Material Composition	SUS316 stainless steel

System Protection Features

High-pressure unloading: Automatic shutdown and audible/visual alarm when water pressure exceeds 6.2 MPa
Low-pressure shutdown protection: Automatic shutdown and alarm when inlet pressure drops below 0.05 MPa
Reverse osmosis membrane cleaning system: Configurable for physical cleaning, chemical cleaning, and protective fluid rinsing

Main Components

Inlet Pump	SUS316
Safety Filter	20' x 5μm
Fine Filter	20' x 5μm, UPVC
High-pressure Pump	Italian-imported AR brand
Reverse Osmosis Membrane	LG / TS
Membrane Housing	FRP material
Cleaning Tank	20L
Chemical Cleaning Device	System-matched
Electrical Components	Schneider brand or equivalent
Conductivity Meter	Kreida

Application Scenarios

This compact freshwater system is ideal for fishing boats, coastal areas, small rural communities, guesthouses, hotels, offshore platforms, remote islands, construction sites, and emergency response situations.

Technical Features

Utilizes advanced reverse osmosis (RO) technology to effectively separate salts and impurities through a semi-permeable membrane under pressure.

Factory Equipment List

Water treatment equipment
Product user manual and usage video
Completion documents (product conformity certificate, factory test report, packing list)
Other consumables and accessories

Important Notice

Due to the specialized nature of seawater desalination equipment, professional consultation is required before purchase. Please contact our customer service team for personalized recommendations based on your specific water usage needs and water quality requirements. We provide comprehensive technical support and specifications for professional applications.

Thank you for supporting Jingchuang Environmental Protection Experts - transforming ocean resources into safe drinking water solutions worldwide.
