Specifications
Highlight:
5000L/D Desalination Device
,700mg/L Desalination Device
,Shipboard Boilers Desalination Device
Product Model:
JC-ZD-5T/D
water yield:
5000L/D
desalination:
>99.5%
Salinity of produced water:
<700mg/L
Water quality:
Conforms To Drinking Water Quality Standard GB5749-2022
applied power:
2.3 Kw
power supply:
AC220V-380V / 50-60Hz
Protection class of electric control:
IP54
Overall dimensions:
1100*600*1650 Mm
net weight:
280Kg
How to operate the equipment:
Fully Automatic
Key Attributes
Brand Name:
nettronics
Model Number:
JC-5T/D
Place of Origin:
sino
Certification:
EC
Minimum Order Quantity:
1
Price:
liaise
Supply Ability:
liaise
Delivery Time:
7-10working days
Payment Terms:
T/T
Standard Packaging:
Export Wooden Box
Product Description

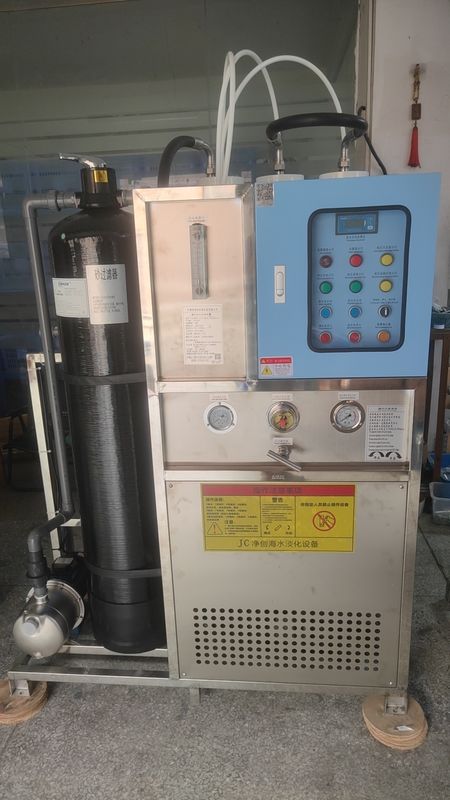

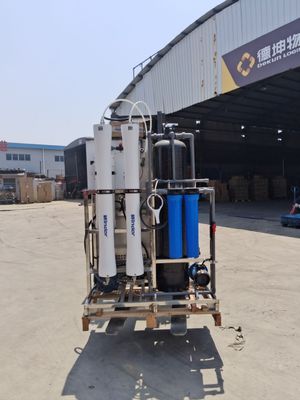

5000L/D Water Yield Desalination Device For Shipboard Boilers
Designed specifically for shipboard boilers, this 5000L/D desalination device produces high-quality freshwater with salinity levels below 700mg/L in the product water.
Product Specifications
| Model | JC-5T/D |
|---|---|
| Water Production Rate | 625 litres per hour (5,000 litres daily) |
| Power Consumption | 2.3 kilowatts |
| Seawater Desalination Efficiency | >99.5% |
| Power Supply | AC 220V-380-440V / 50-60Hz (Single-phase and three-phase customizable) |
| Product Water Conductivity | <700 milligrams per litre |
| Electrical Control Protection Rating | IP54 |
| System Recovery Rate | 10-30% (depending on temperature and water quality) |
| Dimensions | 1100 × 600 × 1650 millimetres |
| Operating Pressure | <6.5 MPa |
| Net Weight | 280 kilograms |
| Reverse Osmosis Configuration | 2 pieces × 2 pieces 4040 membranes and housings |
| Material Composition | SUS316 stainless steel |
System Safety Features
- High-pressure unloading: Automatic shutdown with audible/visual alarm when pressure exceeds 6.2 MPa
- Low-pressure shutdown protection: Automatic shutdown with alarm when inlet pressure drops below 0.05 MPa
- Reverse osmosis membrane cleaning system: Configurable for physical cleaning, chemical cleaning, and protective fluid rinsing
Main Components
- Inlet pump: SUS316 stainless steel
- Safety filter: 20' × 5μm, UPVC
- Fine filter: 20' × 5μm, UPVC
- High-pressure pump: Italian-imported AR brand
- Reverse osmosis membrane: LG / TS compatible
- Membrane housing: FRP material (first line)
- Cleaning tank: 20L capacity
- Chemical cleaning device: System-matched
- Electrical components: Schneider brand or equivalent
- Conductivity meter: Kreida brand
Key Applications
This compact desalination unit is ideal for ships, coastal areas, offshore platforms, remote islands, emergency rescue operations, small rural communities, guesthouses, hotels, factories, and construction sites requiring portable freshwater solutions.
Water Quality Certification
The desalinated water produced meets the national drinking water quality standard GB5749-2022, ensuring safe and pure drinking water.
Complete Equipment Package
- Water treatment equipment
- Product user manual and usage video
- Completion documents (product conformity certificate, factory test report, packing list)
- Other consumables and accessories
Professional Consultation Required
Due to the specialized nature of seawater desalination equipment, professional consultation is required before purchase. Contact our customer service team for product recommendations based on your specific water usage needs and water quality requirements. We provide comprehensive technical support and professional troubleshooting assistance.
