Specifications
Highlight:
1.8kw Domestic Seawater Desalinator
,IP54 Domestic Seawater Desalinator
,Horizontal Domestic Seawater Desalinator
Product Model:
JC-ZD1T/D
water yield:
1000L/D
desalination:
>99.5%
Salinity of produced water:
<700mg/L
Water quality:
Conforms To Drinking Water Quality Standard GB5749-2022
applied power:
1.8kw
power supply:
AC220V-380V / 50-60Hz
Protection class of electric control:
IP54
Overall dimensions:
800*600*600 Mm
net weight:
80Kg
How to operate the equipment:
Fully Automatic
Key Attributes
Brand Name:
nettronics
Model Number:
JC-1T/D
Place of Origin:
sino
Certification:
EC
Minimum Order Quantity:
1
Price:
liaise
Supply Ability:
liaise
Delivery Time:
7-10working days
Payment Terms:
T/T
Standard Packaging:
Export Wooden Box
Product Description

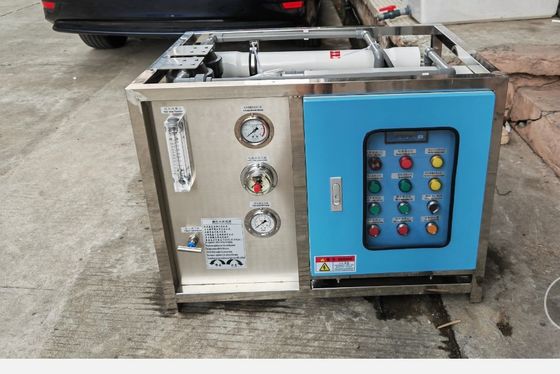

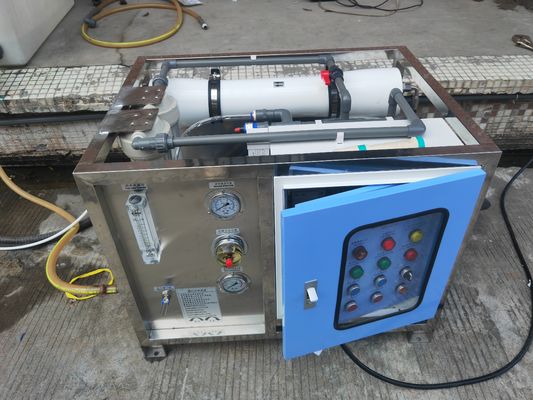

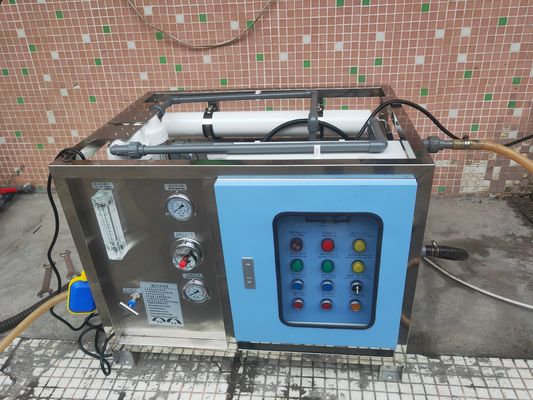

IP54 Electric Control Protection Small Horizontal Domestic Seawater Desalinator
Compact seawater desalination system with 1.8kW applied power, producing high-quality drinking water meeting GB5749-2022 national standards.
Technical Specifications
| Model | JC-1T/D |
| Water Production Capacity | 42 litres per hour (1,000 litres per day) |
| Power Consumption | 1.87 kW |
| Desalination Rate | >99.5% |
| Power Supply | AC 220V - 380V / 50 Hz (Single-phase and three-phase customizable) |
| Output Water Salinity | <700 mg/L |
| Electrical Protection Rating | IP54 |
| System Recovery Rate | 10% (depending on temperature and water quality) |
| Operating Pressure | <6.5 MPa |
| Dimensions | 800 × 600 × 600 mm |
| Net Weight | 80 kg |
System Protection Features
- High-pressure unloading: Automatic shutdown with audible/visual alarm when pump pressure exceeds 6.2 MPa
- Low-pressure shutdown protection: Automatic shutdown with alarm when inlet pressure drops below 0.05 MPa
- Reverse osmosis membrane cleaning system: Configurable for physical cleaning, chemical cleaning, and protective fluid refilling
Main Components
- Feed Pump: SUS304 stainless steel
- Safety Filter: 10' × 10μm, UPVC
- Precision Filter: 10' × 5μm, UPVC
- High-pressure Pump: Italian-imported AR brand
- Reverse Osmosis Membrane: LG / TS / Hydrogen
- Membrane Housing: (FirstLine) FRP material
- Cleaning Tank: 8L capacity
- Electrical Components: Schneider brand or equivalent
- Conductivity Meter: Kreida
Application Scenarios
Ideal for ships, coastal areas, household use, offshore platforms, remote islands, emergency rescue, and disaster response situations requiring portable freshwater solutions.
Included Equipment
- Water Treatment Equipment
- Product User Manual and Usage Video
- Completion Documents (Certificate of Conformity, Factory Test Report, Packing List)
- Other Consumables and Accessories
Technology Overview
Utilizes advanced reverse osmosis (RO) membrane filtration technology to effectively remove salts and impurities, transforming seawater into safe drinking water through high-pressure filtration processes.
Professional Consultation Required: Due to the specialized nature of seawater desalination equipment, please contact our customer service team for personalized product recommendations based on your specific water usage requirements and water quality conditions. We provide comprehensive technical support and specifications.
