Specifications
Highlight:
Brackish Groundwater Purification Plant
,380V Brackish Groundwater Purification Plant
,440V Brackish Groundwater Purification Plant
Environmental Adaptability:
Operates Stably In Extreme Climate And Complex Terrain
Product Category:
Reverse Osmosis Desalination System
Applications:
Industrial Use, Remote Areas, Emergency Situations, Commercial Use, Residential Use
Energy Saving:
Low-energy Design Reduces Operating Costs And Environmental Burden
Product Size:
1300mm*750mm*1700mm
Product Name:
Large-Scale Desalination Plant For Providing Drinking Water In Rural Areas
Weight:
500KG
Voltage:
380V-440V
Key Attributes
Brand Name:
Net Creation
Model Number:
JC-15T
Place of Origin:
China
Certification:
CE
Minimum Order Quantity:
1
Price:
communicate
Supply Ability:
1000 units per day
Delivery Time:
communicate
Payment Terms:
T/T
Standard Packaging:
communicate
Product Description

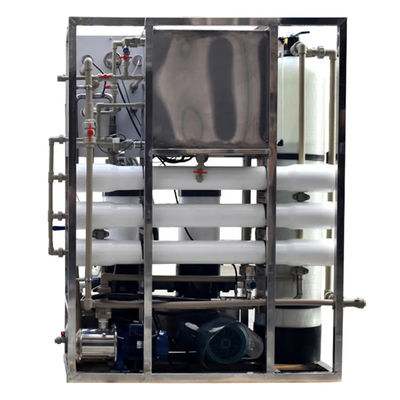

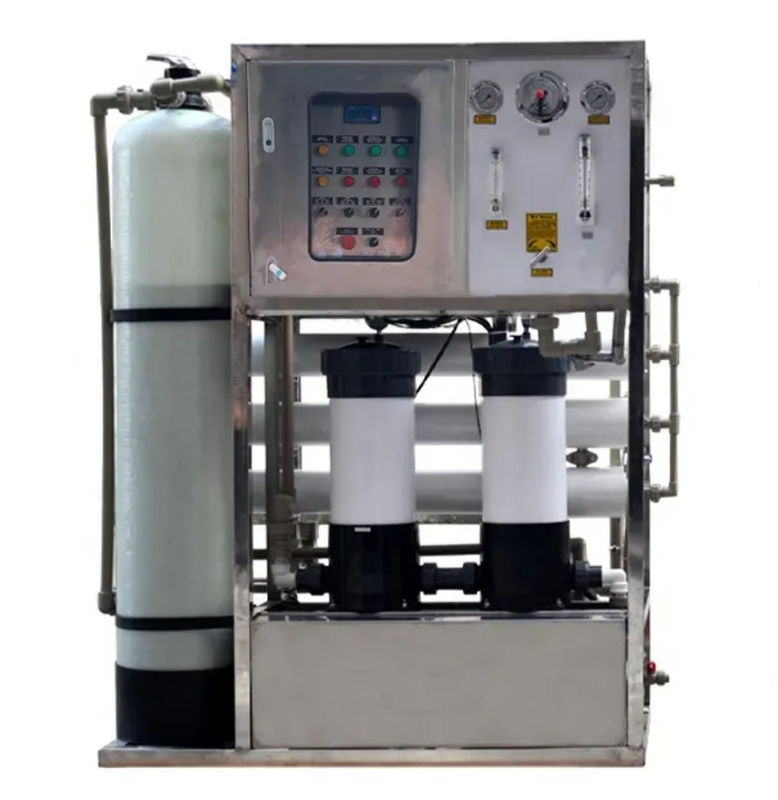

380V-440V Voltage Brackish Groundwater Purification Plant
The 15T Desalination Water System is a highly efficient water treatment plant designed to convert seawater or brackish water into fresh drinking water that meets quality standards. This system produces 15 tonnes of purified water per day with a rate of 0.63 tonnes per hour.
System Overview
This reverse osmosis system utilizes mechanical filtration, activated carbon filtration, and softening exchange as pre-treatment stages to effectively remove suspended solids, silt particles, organic colloids, organics, odors, residual chlorine, calcium, magnesium, and other impurities. Programmable controllers manage the reverse osmosis process for pre-desalination, removing soluble salts, bacteria, and heat sources to ensure finished water quality meets standards.
Water Production Process
Water source → Booster pump → Manganese sand filter → Activated carbon filter → Safety filter → High-pressure pump → Reverse osmosis membrane elements → Pure water tank → Point of water intake
Product Features
- High-performance imported fittings with advanced automation
- Automatic shutdown functions for low-pressure and high-pressure conditions
- Water pressure fluctuation protection
- Automatic controller for regular pre-filter material flushing
- IC microcomputer controller for automatic reverse osmosis membrane flushing
- Automatic water quality monitoring system
- Compact footprint with low energy consumption
- Environmentally friendly, pollution-free operation
- Simple process with high water quality output
- Easy maintenance requirements
- High removal rates: soluble salts (>97%), organics (>98%), colloids, bacteria and heat sources (>98%)
Applications
Widely used in electronics, industrial, medical, and food industries for pure water and ultrapure water preparation; textile and chemical process water; food and beverage industry water; drinking water, beverages, beer, liquor, and health products purification; brackish water and seawater desalination.
Technical Specifications
| Parameter | Specification |
|---|---|
| Processing Capacity | 15 tonnes per day (T/D) |
| Water Production Rate | 0.63 tonnes per hour |
| Power Consumption | 50,000 watts (W) |
| Power Requirements | 380-415 volts (V) |
| Dimensions | 1300 mm L × 800 mm W × 1650 mm H |
System Design
Engineered for high efficiency and low operational costs, this system is ideal for applications requiring substantial fresh water supply, including islands, ships, offshore drilling platforms, and brackish water regions. Advanced reverse osmosis technology and automated control systems ensure consistent water quality standards and reliable operation.
Technical Support & Services
- Installation assistance and guidance
- Troubleshooting support for system issues
- Regular maintenance recommendations
- Repair services for malfunctions
- Training programs for operators and maintenance staff
Packaging & Shipping
Product Packaging
The Reverse Osmosis Desalination System is carefully packaged to ensure safe delivery. Each component is securely wrapped and cushioned to prevent damage during transit. The system is packed in sturdy cardboard boxes with clear labeling for easy identification.
Shipping
Fast and reliable shipping is available. Orders are dispatched within 1-2 business days after processing. A tracking number is provided to monitor delivery status. Our shipping partners handle systems with care to ensure pristine condition upon arrival.
Frequently Asked Questions
What is the brand name of the Reverse Osmosis Desalination System?
The brand name is Net Creation.
What is the model number of the Reverse Osmosis Desalination System?
The model number is JC-1T31.
Where is the Reverse Osmosis Desalination System manufactured?
The system is manufactured in China.
What is the minimum order quantity for the Reverse Osmosis Desalination System?
The minimum order quantity is 1 unit.
What are the payment terms for purchasing the Reverse Osmosis Desalination System?
The payment terms are T/T (Telegraphic Transfer).
