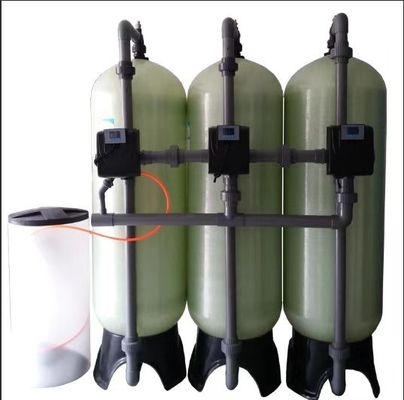

10 Tons Of Three-Stage Softened Water Configuration, 10 Tons Of Water Per Hour

The three-stage softening water system is a high-efficiency water treatment equipment designed to remove hardness ions such as calcium (Ca²⁺) and magnesium (Mg²⁺) from water, effectively reducing water hardness through ion exchange technology.

• Processing Capacity: 10 tons of water per hour for industrial and commercial applications
• Energy Efficient: Low power consumption of only 24W with 220V power supply
• Compact Dimensions: 2800mm long × 900mm wide × 2200mm high for versatile installation
• Automated Operation: Features automatic control valve for complete process cycles including operation, backwashing, salt absorption, slow washing, salt box water replenishment, and forward washing
• Easy Maintenance: Simplified maintenance procedures including resin bed cleaning, control valve inspection, salt box checking, filter cleaning, discharge pipe examination, and regular water quality testing

The softening system utilizes sodium ion exchange resin technology. When hard water passes through the resin layer, calcium and magnesium ions are adsorbed by the resin while sodium ions are released, effectively softening the water. The system automatically regenerates using salt water when resin capacity is reached.

• Industrial cooling systems
• Central air conditioning systems
• Hot water boiler systems
• Food, beverage, brewing, laundry, printing and dyeing, chemical, and pharmaceutical industries

Equipment must be placed horizontally with inlet water pressure maintained at 1.0-1.5 KG/CM². The salt box should be positioned close to the exchange tank with minimal salt absorption pipe length. Regular maintenance ensures extended equipment lifespan and optimal performance.

• High-efficiency softening with effective hardness ion removal
• Fully automated operation reducing manual intervention
• Energy-saving design with low power consumption
• Simplified maintenance procedures reducing operational costs
