100t Desalination Water System Producing 5 Tons Of Water Per Hour

Brand Name:	Net Creation
Model Number:	JC-5T23
MOQ:	1
Price:	communicate
Delivery Time:	communicate
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Model:

Net Creation-23

Freshwater Production:

Water Production: 5 Tons Per Hour

Power (output):

30000w

Power Supply:

AC220V-380-440V / 50-60Hz

Water Quality:

Meet Water Quality Standards

Product Size (L*B*H):

5000mm*1100mm*2150mm

Weights:

Communicate

Main Features:

Compact And Generous Structure; Easy To Operate And Maintain

Packaging Details:

communicate

Supply Ability:

1000 units per day

Highlight:

100t Desalination Water System

5Tons/H Desalination Water System

100t Seawater Desalination System

Product Description

100t Desalination Water System, Producing 5 Tons Of Water Per Hour

The 100T desalination water system is a high-efficiency water treatment equipment specially designed to convert seawater or brackish water into fresh water that meets the standards for drinking water.

The following is a detailed introduction to the system:
1. Product Overview: The system uses reverse osmosis technology, and uses mechanical filtration, activated carbon filtration, and softening exchange as pre-treatment to effectively remove suspended matter, silt particles, organic colloids, organic matter, odor, residual chlorine, calcium and magnesium and other impurities. Subsequently, the programmable controller is used to control the reverse osmosis device for pre-desalination, further removing soluble salt substances, bacteria, heat sources, etc. in the raw water to ensure that the quality of the finished water meets the standards[^0^].

2. Water production process: The water source first passes through the booster pump, manganese sand filter, activated carbon filter, and security filter, and then enters the reverse osmosis membrane element through a high-pressure pump, and finally flows into the pure water tank for use at the water point[^1^].

3. Product features:
• High rate of imported accessories, high degree of operation automation, including automatic shutdown when low pressure is full of water, automatic shutdown when high pressure is full of water, protection against water pressure fluctuation, automatic controller to regularly flush the pre-filter material, IC microcomputer controller to automatically flush the reverse osmosis membrane, and automatic water quality monitoring.
• Small footprint, low energy consumption, no pollution, simple process, high water quality, easy operation and maintenance. • High removal rate, more than 97% of soluble salts, more than 98% of organic matter, more than 98% of colloids, bacteria, and heat sources[^2^].

4. Scope of application: Widely used in the preparation of pure water and ultrapure water in electronics, industry, medicine, food and other industries, process water in textile and chemical industries, water for food and beverage industry, purification and preparation of drinking pure water, beverages, beer, liquor, health products, etc., as well as desalination of brackish water and seawater and other fields[^3^].

5. Technical parameters: The 100T desalination water system has the following technical parameters:
• Processing capacity: 100 tons/day (T/D)
• Water production rate: 5 tons/hour
• Power: 30,000 watts (W)
• Power requirements: 380-415 volts (V)
• Dimensions: 5000 mm long x 1100 mm wide x 2150 mm high This system is designed and manufactured with high efficiency and low cost in mind, and is suitable for various occasions that require a large amount of fresh water supply, such as islands, ships, offshore drilling platforms, and brackish water areas. Advanced reverse osmosis technology and automated control systems ensure high water quality standards and stable system operation.

........................................................................................................................................................................................................................................

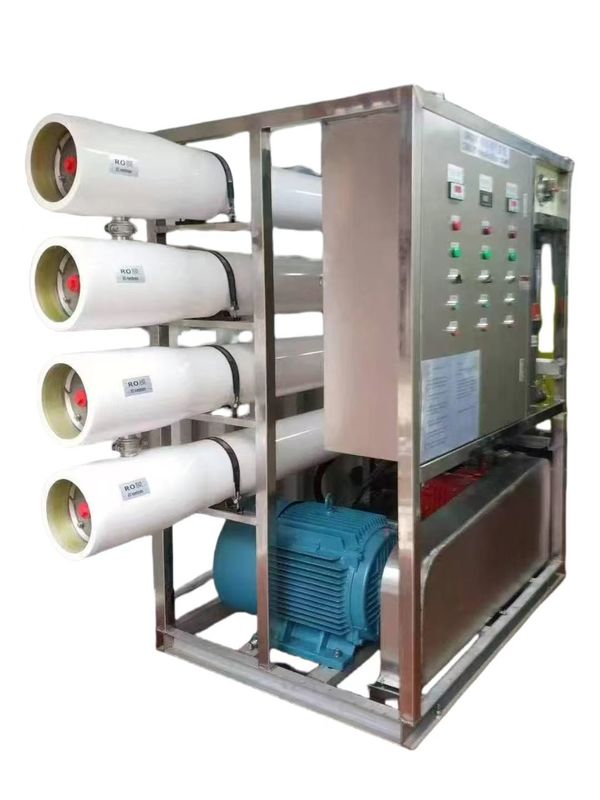

100t Desalination Water System Producing 5 Tons Of Water Per Hour 0

Note: Due to product specificity need to buy the pro please contact our customer service, customer service will be based on the pro's water consumption and water quality problems to recommend the right products to the pro, in order to avoid unnecessary future trouble please do not blindly buy equipment, such as the need for specific details of the specifications and parameters or picture trouble pro contact customer service, we will answer the pro's questions, thank you for the pro's support of the net environmental protection, thanks!
