Specifications
Highlight:
Reverse Osmosis Wastewater Reuse System
,30 Tons/Hour Wastewater Reuse System
,20000w Wastewater Reuse System
Product Model:
JC-389
freshwater production:
Water Output 30 Tons/hour
power (output):
20000kw
power supply:
AC220V-380-440V / 50-60Hz
Water quality:
Conforms To Drinking Water Quality Standard
Product size (L*B*H):
6500mm*1300mm*2250mm
weights:
Communicate
Main features:
Compact And Generous Structure; Easy To Operate And Maintain
Key Attributes
Brand Name:
Net Creation
Model Number:
JC-144T389/D
Place of Origin:
China
Certification:
CE
Minimum Order Quantity:
1
Price:
communicate
Supply Ability:
1000 units per day
Delivery Time:
communicate
Payment Terms:
T/T, T/T, T/T
Standard Packaging:
communicate
Product Description

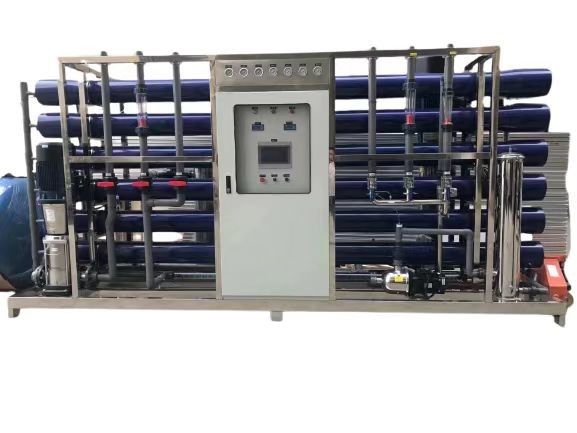

Reverse Osmosis Wastewater Reuse System - 30 Tons/Hour Capacity
System Specifications
Water Output: 30 Tons/Hour
Power Consumption: 20,000W
Power Supply: 380-440V
Dimensions: 6500mm (L) × 1300mm (W) × 2250mm (H)
Power Consumption: 20,000W
Power Supply: 380-440V
Dimensions: 6500mm (L) × 1300mm (W) × 2250mm (H)
System Overview & Working Principle
This advanced reverse osmosis wastewater reuse system efficiently converts wastewater into reusable water resources through a comprehensive multi-stage treatment process.
1. Pretreatment Phase
Wastewater undergoes initial pretreatment to remove large particles, suspended matter, and certain chemicals. Pretreatment depth is determined by membrane material, module structure, raw water quality, production water requirements, and recovery rate. Operating parameters: inlet water temperature 5-45°C at pH 2-10, with operating temperature below 35°C when pH exceeds 10.
2. Microfiltration & Ultrafiltration
These systems remove smaller particles and microorganisms. Microfiltration eliminates suspended particles, bacteria, viruses, and large colloids, while ultrafiltration removes colloids, proteins, microorganisms, and large molecular organic compounds.
3. Nanofiltration Process
Optional nanofiltration (NF) step removes multivalent ions, some monovalent ions, and organic matter (200-1000 Daltons). Effectively reduces hardness, color, radioactive radium from well water, and partially removes soluble salts.
4. Reverse Osmosis Core Treatment
The central treatment stage utilizes semipermeable membranes (cellulose acetate, polysulfonates, polyamides) to remove soluble salts and organic matter above 100 Daltons. Achieves up to 98% removal of total dissolved solids (TDS).
5. Post-Treatment & Quality Assurance
RO-treated water receives additional chemical treatment or physical filtration to meet specific water quality standards for reuse applications.
6. Advanced Control Systems
Features an intuitive electrical control system with sensitive, reliable operation. Includes automatic protection functions and immediate shutdown capabilities during fault conditions.
7. Chemical Cleaning System
Integrated chemical cleaning system with segmented cleaning functionality ensures long-term membrane performance and system reliability.
8. Efficient Water Supply System
Treated water flows to reuse water pools, with constant pressure variable frequency pumps ensuring stable, consistent water supply.
Commercial Seawater RO Filtration System
Our comprehensive seawater desalination equipment transforms ocean water into clean, safe drinking water. The system includes:
- Booster pump and high-pressure pump systems
- FRP/Carbon Steel pretreatment tanks (sand filter, activated carbon filter)
- Cartridge filter housing and chemical dosing systems
- FRP membrane pressure vessels with 2540 or 4040 membranes
- Advanced control panel with touch screen interface
- Customizable materials and components based on water quality and customer requirements
The intuitive touch screen interface displays complete system flow diagrams and enables automatic or manual system control. RO membranes effectively block particles, viruses, and bacteria, producing exceptionally clean and safe water.
About Dongguan Jingchuang Environmental Protection Equipment Co., Ltd.
In today's increasingly scarce water resource environment, we are committed to transforming vast oceans into sustainable life sources, providing clean, safe drinking water worldwide.
Important Purchase Information
Due to the specialized nature of this product, please contact our customer service before purchasing. Our team will analyze your specific water consumption and quality requirements to recommend the optimal system configuration. To avoid future complications, please do not purchase equipment without proper consultation. For detailed specifications, technical parameters, or product images, please contact our customer service department. We appreciate your support for environmental protection and thank you for considering our solutions.
