Specifications
Highlight:
Pure Water Purification Technology
,Multi Stage Pure Water Purification Technology
,PLC Pure Water Purification Technology
Water Quality:
18.2 MΩ.cm
Voltage:
220V/380V
Warranty:
1 Year
Flow Rate:
Customisable
filtration rate:
99.5%
Material:
Stainless Steel
Application:
Laboratory, Pharmaceutical Industry, Electronics Industry
Operational Runs:
Automation
Inlet Water Quality:
Tap Water
Certifications:
CE, ISO9001
Installation:
Wall-mounted
Outlet Water Quality:
18.2 MΩ.cm
Model:
UW-1000
Control System:
PLC
Purity:
99.99%
Power Supply:
220V/50Hz
Operating Pressure:
0.2-0.5 MPa
Capacity:
1000 Liters Per Hour
Dimensions:
1200mm X 800mm X 1500mm
Purification Method:
Multi-stage Filtration
Type:
Reverse Osmosis
Operation Mode:
Automatic
Key Attributes
Brand Name:
nettronics
Model Number:
JC-CC33T/D
Place of Origin:
sino
Certification:
EC
Minimum Order Quantity:
1
Price:
liaise
Supply Ability:
liaise
Delivery Time:
7-10working days
Payment Terms:
T/T
Standard Packaging:
Export Wooden Box
Product Description

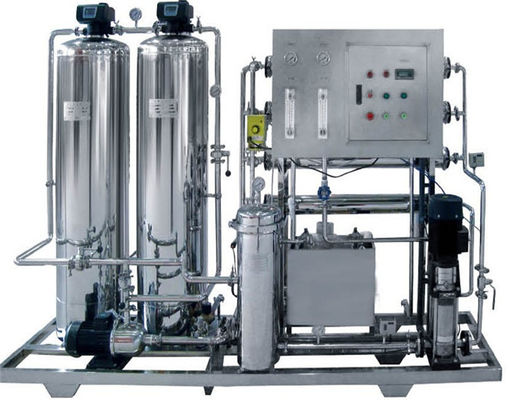

Pure Water Purification Technology Multi Stage Filtration PLC Control System Solution
DI Ultrapure Water Device for Electronic Optical Disc Production
Ultrapure water equipment utilizes a comprehensive pretreatment + reverse osmosis + EDI system to effectively remove salts, impurities, bacteria, and other contaminants from water, ensuring the produced water quality meets enterprise production requirements.
System Overview
The system features an integrated design with modular installation, offering low energy consumption and minimal space requirements. By combining RO reverse osmosis and EDI technology with steady flow pressure control, and supported by advanced pretreatment, the system delivers stable water quality, easy operation, low operating costs, environmental friendliness, and simplified maintenance. Produced water achieves resistivity ≥ 18.2MΩ.CM at 25°C.
EDI Technology Applications
EDI high purity water equipment serves as secondary desalination following reverse osmosis, producing water up to 10-18.2MΩ.CM. Widely used in microelectronics, semiconductor manufacturing, power generation, pharmaceutical industries, and laboratories. Also suitable for pharmaceutical distilled water, food and beverage production, power plant boiler makeup water, and various high purity water applications.
EDI utilizes anion and cation membranes in symmetrical stacked configuration with ion exchange resins. Under direct current voltage, continuous ion exchange and water electrolysis generate H+ and OH- ions for constant resin regeneration, producing increasingly pure water.
EDI equipment combines reverse osmosis and ion exchange technologies with intelligent PLC control systems, automatically monitoring and displaying water quality while ensuring consistent water production.
EDI Advantages Over Traditional Ion Exchange
- Requires only 5% of the resin used in traditional methods
- No chemical regeneration needed, reducing acid, alkali, and cleaning water consumption
- Clean production technology with no waste acid/alkaline discharge
- Easy automation integration with stable water quality
- Produces electronic grade water (resistivity 15-18MΩ-cm, endotoxin <0.1mg/L)
- Excellent removal of weakly dissociated substances (CO₂, silicon, boron, ammonia)
- Continuous production process without regeneration downtime
Key Product Features
- Fully automatic control system with imported components for high stability
- Advanced automation with automatic shutdown and protection functions
- Composite membrane modules for superior separation and transmission rates
- Low energy consumption with high water utilization and operating efficiency
- Compact, space-saving design
- Automatic membrane flushing system extends membrane lifespan
- Minimal maintenance requirements with long-term operational reliability
- Integrated CIP membrane cleaning system
- Premium Schneider electrical components for quality assurance
- Optional remote monitoring for real-time system observation
Product Water Quality Specifications
| Parameter | Unit | 18MΩ Pure Water | Notes |
|---|---|---|---|
| Resistivity 25°C | MΩ-cm | ≥17.5 | |
| Microparticles (≥0.1μm) | pcs/ml | 5 | |
| Microparticles (≥0.2μm) | pcs/ml | 5 | |
| Bacterial Count | pcs/ml | 0.1 | |
| TOC | μg/L | 20 | |
| Na+ | μg/L | 0.5 | |
| K+ | μg/L | 0.5 | |
| Zn++ | μg/L | 0.2 | |
| Cu | μg/L | 0.2 | |
| SiO₂ | μg/L | 1 | |
| Cl | μg/L | 1 | |
| Backwater Pressure | bar | 2.5±0.5 | |
| Water Temperature | °C | 23±1 |
Important Purchase Information
Due to the specialized nature of our products, please contact our customer service team before purchasing. Our representatives will recommend suitable equipment based on your specific water consumption and quality requirements. To avoid potential issues, please do not purchase equipment without consultation. For detailed specifications, parameters, or additional images, please contact customer service for comprehensive assistance. Thank you for your support of Net Environmental Protection!
