Specifications
Highlight:
Compact Seawater Purification Technology
,Online Support Seawater Purification Technology
,Generous Seawater Purification Technology
Product Model:
JC-10T/D
freshwater production:
10000L/D
power (output):
4kw
power supply:
AC220V-380-440V / 50-60Hz
Water quality:
Conforms To Drinking Water Quality Standard GB5749-2022
Product size (L*B*H):
1430mm*820mm*1700mm
weights:
350KG
Main features:
Compact And Generous Structure; Easy To Operate And Maintain
Raw Water:
Seawater
Electric Source:
3phase, 220/380V, 50/60HZ
Tank Material:
FRP Barrel
Model:
SD-1000
Recovery Rate:
≥50%-60%
Material:
Stainless Steel
After Warranty Service:
Onlines Upport
Technology:
RO
Production:
0.5-200T Per Hour Make To Order
Origin:
Guangzhou, China
Business Type:
Manufacturer
Sterilizer:
UV Lamp/Ozone/Pasteurization
Use:
Desalination System
Control_System:
PLC
Water Pressure:
0.25-0.6MPa
Key Attributes
Brand Name:
nettronics
Model Number:
JC-10T/D
Place of Origin:
sino
Certification:
EC
Minimum Order Quantity:
1
Price:
liaise
Supply Ability:
liaise
Delivery Time:
7-10working days
Payment Terms:
T/T
Standard Packaging:
Export Wooden Box
Product Description

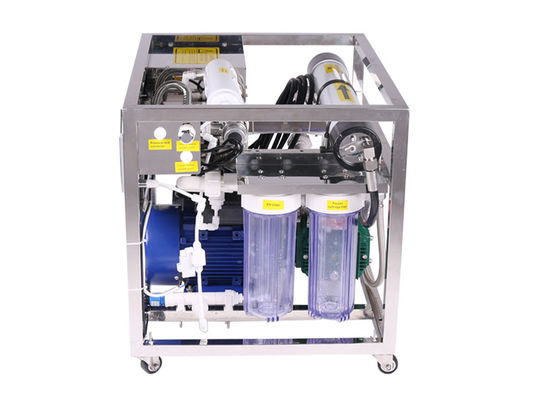

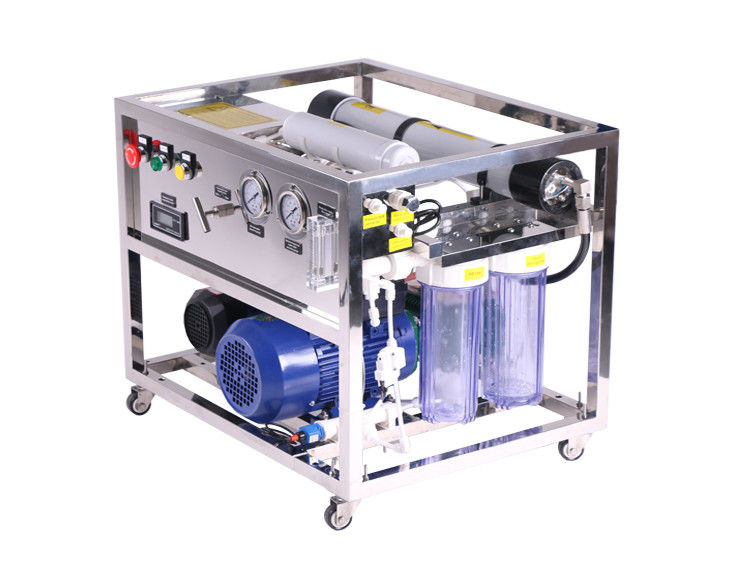

Compact Generous Structure Seawater Purification Technology with Online Support
Salt Water Separation and Desalination Equipment
Drinking water is essential for life. Currently, 2 billion people worldwide face freshwater scarcity, particularly in island nations, saline-alkaline regions, ocean-going vessels, and offshore drilling platforms. Our desalination units effectively solve drinking water challenges by converting seawater into potable water for ships, islands, drilling platforms, and saline-alkaline areas.
Nettronics Desalination System Technical Parameters
| Product Model | JC-10T/D |
|---|---|
| Water Quality | Complies with drinking water standard GB5749-2022 |
| Water Production | 250 litres/hour |
| Power Consumption | 4KW |
| Desalination Rate | >99.5% |
| Power Supply | AC220V-380V / 50Hz / three-phase 440V/60HZ |
| Salinity of Produced Water | <700mg/L |
| Electrical Control Protection Grade | IP54 |
| System Recovery Rate | 25% (depending on temperature and water quality) |
| Dimensions (L×W×H) | 1430×820×1700 mm |
| Operating Pressure | <6.5Mpa |
| Net Weight | 350Kg |
| Reverse Osmosis Membrane | RO membrane shell |
| Material Composition | SUS316 stainless steel |
System Safety Features
- High pressure unloading: Automatic shutdown protection with audible/visual alarm when high pressure pump exceeds 6.2MPa
- Low-pressure shutdown protection: Automatic shutdown with alarm when pretreatment water supply causes high-pressure pump inlet pressure below 0.05MPa
- Manual multi-way valve for multi-media filter cleaning when differential pressure reaches 0.1MPa
- Reverse osmosis membrane cleaning system for physical cleaning, chemical cleaning, and protective fluid refilling
Main System Components
Inlet pump: SUS316
Multi-media filter: Ø300x1400mm, FRP
Security filter: 20' x 10μm, UPVC
Precision filter: 20' x 5μm, UPVC
High pressure pump: Italy imported AR brand / South pump (CNP)
Reverse osmosis membrane: LG / U.S. Dow / Toray / Hydrogen seawater membrane
Membrane shell: Chengda sea (FirstLine) FRP material
Cleaning tank: 8L, PE
Chemical cleaning device: System supporting
Electrical components: Schneider brand
Conductivity meter: Kreda brand
Factory Equipment Package
- Water treatment equipment
- Product operating instructions and instructional videos
- Completion documentation (product certification, factory test report, packaging list)
- Other consumables and accessories
Note: Water production refers to conditions of 25°C water temperature, 35000mg/L salt content, and 5Mpa operating pressure.
Equipment can be customized according to customer requirements.
Important Notice: Due to product specificity, please contact our customer service before purchasing. Our team will recommend suitable products based on your water consumption and quality requirements to avoid future complications. For detailed specifications, parameters, or images, please contact customer service. We appreciate your support of Nettronics Environmental Protection!
