Specifications
Highlight:
Hard Water Reverse Osmosis
,Industrial Water Treatment Reverse Osmosis
,100000 psi Reverse Osmosis
Control Method:
Automatic And Manual
Control Mode:
Flow Rate Type, Time Type
Application:
Treat Hard Water
Operating Temperature:
5-50 Degrees Celsius
Inlet Water Pressure:
0.2～0.4Mpa
Water Softening Method:
Ion Exchange
Flow Rate:
10 Gallons Per Minute
Keywords:
Water Softener
Weight:
100-10000 Kglink Up
Capacity:
1000-1000000 Liters Per Hour
Function:
Soften Water And Remove Hardness
Material:
Stainless Steel
Type:
Whole House Water Filter
Filter Size:
20 Inches
Filtration Method:
Manganese Sand, Activated Carbon, Quartzite
Maximum Pressure:
1000-100000 Psi
Warranty:
1 Year
Dimensions:
20 X 4.5 Inches
Dimensional flow:
Communication Negotiation
Key Attributes
Brand Name:
nettronics
Model Number:
JC-1-100T/D
Place of Origin:
sino
Certification:
EC
Minimum Order Quantity:
1
Price:
liaise
Supply Ability:
liaise
Delivery Time:
7-10working days
Payment Terms:
T/T
Standard Packaging:
Export Wooden Box
Product Description

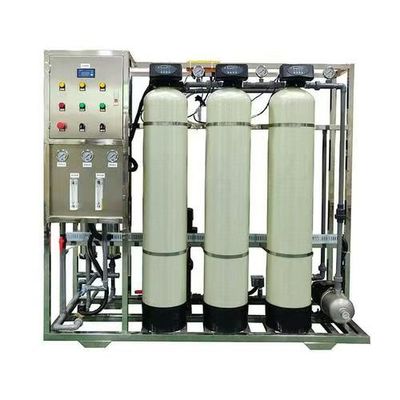

Automatic Iron and Manganese Removal Well Water Filter System
This industrial water treatment system features reverse osmosis technology designed for hard water applications with maximum pressure capabilities ranging from 1000 to 100,000 Psi. The system effectively removes iron and manganese from groundwater sources.
Iron and Manganese Filter Overview
Groundwater in many regions contains elevated levels of iron (5-15mg/L, up to 20-39mg/L) and manganese (0.5-2.0mg/L, sometimes exceeding 2.0mg/L). When iron exceeds standards, it exists as Fe2+, making water appear clear initially but causing turbidity and ferruginous odors over time. Fe2+ can contaminate ion exchange resins and reverse osmosis membranes, while iron-containing water in boiler systems leads to scaling and corrosion.
Our iron and manganese removal filter combines oxidation, ion replacement, retention, and clarification processes. The system utilizes aeration technology where oxygen converts bivalent iron and manganese into Fe(OH)3 and MnO2. Depending on concentration levels, we employ jet aeration or hollow multi-faceted ball aeration with single or multi-stage filtration to achieve reliable, stable results meeting national drinking water standards (iron ≤0.3mg/L, manganese ≤0.1mg/L).
Drinking Water Compliance
Many municipalities and industrial facilities using groundwater sources face iron content challenges typically ranging from 2-16mg/L. After treatment with our system, iron content is reduced to ≤0.3mg/L, fully compliant with GB5749-85 national drinking water quality standards.
Application Scope
- Groundwater iron removal systems with iron content ≤8mg/L
- Groundwater iron removal systems with iron content >8mg/L to ≤16mg/L
- Ideal for small to medium towns, rural water supply, industrial/mining enterprises, and various industrial water treatment processes
System Advantages
- Fully automated operation integrating water inlet, oxygen flushing, distribution, filtration, backwashing, and discharge processes
- No additional equipment required (suction devices, air compressors, backwash pumps, or water towers)
- High-efficiency manganese sand filter media ensures consistent water quality and quantity
- Optional electrical control system with high/low water level monitoring for complete automated operation
Technical Specifications
| Parameter | Specification |
|---|---|
| Applicable Feed Water Iron Content | ≤8mg/L or >8mg/L～≤16mg/L |
| Effluent Iron Content | ≤0.3mg/L (GB5749-85 compliant) |
| Surface Load | 8-9 M³/H·M² |
| Flushing Intensity | 14-16 L/S·M² |
| Flushing Time | 4-6 minutes (adjustable) |
| Inlet Pressure | 0.2 MPa |
| Filter Media | Delicate manganese sand 0.5-2mm particle size |
| Working Temperature | 5℃～40℃ (custom temperatures available) |
Multi-Media Filtration System
This system removes suspended matter, particles, colloids, turbidity, and chromaticity from raw water. It effectively filters particles, algae, and other visible matter through advanced micro-flocculation filtration using multiple layers of specialized media. The multi-media filter ensures SDI values ≤4, providing essential protection for downstream RO systems with low operational costs and easy maintenance.
Backwash cycles occur every 16-48 hours, controlled by pressure parameters and automated sequencing for backwash, operation, and forward wash processes.
Activated Carbon Filtration
Our activated carbon filtration provides essential water treatment capabilities including:
- De-coloring: Removes chromaticity from iron, manganese, and organic pollutants
- Dechlorination: Eliminates odors from residual chlorine
- Organic matter removal: Targets pesticides, insecticides, chlorinated hydrocarbons, aromatic compounds, BOD and COD
- Organic chlorine removal: Effectively reduces THMS and other disinfection byproducts
- Ammonia and nitrite removal
- Protection for ultrafiltration and reverse osmosis cartridges
- Deodorization and removal of trace heavy metals, synthetic detergents, and radioactive substances
Water Softening System
The softener utilizes strong acid-type cationic resin to remove calcium and magnesium ions, reducing water hardness to <0.03meg/L (CaCO3) and preventing scale formation. The system features a corrosion-resistant stainless steel tank with 3000/hr production capacity and an advanced control valve system.
Equipped with high-efficiency strong acid cation resin and automated salt regeneration system, this softener is widely used in boiler water treatment, solar heating, chemical industries, and various industrial applications.
Important Note: Due to the specialized nature of these products, please contact our customer service before purchasing. Our team will assess your water consumption and quality issues to recommend appropriate solutions. Avoid盲目购买设备 (blind equipment purchases) to prevent future complications. For specific technical specifications, detailed parameters, or product images, please reach out to our customer service representatives for comprehensive assistance.
