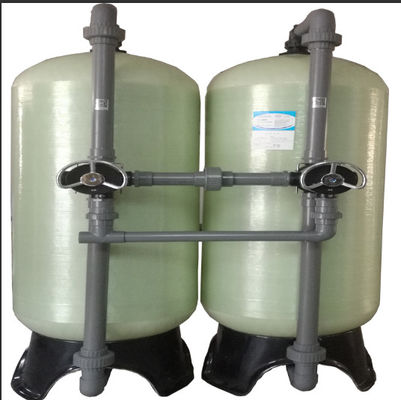

Compact Generous Structure Groundwater Filter For JC-2T/D

Name: Compact Generous Structure Groundwater Filter For JC-2T/D
Brand: Dongguan Jingchuang Environmental Protection Equipment Co.
SKU: JC-2T/D
Availability: InStock

Brand Name:	nettronics
Model Number:	JC-2T/D
MOQ:	1
Price:	liaise
Payment Terms:	T/T
Supply Ability:	liaise

Detail Information

Product Description

Detail Information

Place of Origin:

sino

Certification:

Product Model:

JC-2T/D

Freshwater Production:

1000L/D

Power (output):

0.75kw

Power Supply:

AC24V-48V-220V / 50-60Hz

Water Quality:

Conforms To Drinking Water Quality Standard GB5749-2022

Product Size (L*B*H):

1500mm*900mm*2002mm

Weights:

50KG

Main Features:

Compact And Generous Structure; Easy To Operate And Maintain

Packaging Details:

Export Wooden Box

Highlight:

Compact Groundwater Filter

Generous Structure Groundwater Filter

2T/D Groundwater Filter

Product Description

Compact Generous Structure Groundwater Filter For JC-2T/D

Seawater Desalination System for Commercial Vessels

Puretronics desalination systems provide one of the most valued solutions for Nettronics' environmentally friendly yachts - the ability to produce fresh water. As a distinctive feature of eco-friendly vessels, our yacht desalination machines efficiently purify seawater into drinkable fresh water through reverse osmosis membranes, reducing the need for bottled drinking water reserves.

Desalination systems not only minimize plastic waste but also enhance vessel self-sufficiency. With over 2 billion people worldwide facing freshwater scarcity, particularly in island nations, saline regions, ocean-going vessels, and offshore drilling platforms, our desalination units provide reliable drinking water solutions.

Product Specifications - Nettronics Desalination System

Product Model	JC-2T/D
Water Quality	Complies with drinking water standard GB5749-2022
Water Production	250 litres/hour
Power Consumption	0.75KW
Desalination Rate	>99.5%
Power Supply	AC24V-220V / 50Hz /60HZ
Produced Water Salinity	<700mg/L
Electrical Protection Grade	IP54
System Recovery Rate	25% (depending on temperature and water quality)
Dimensions (LWH)	800400300 mm
Operating Pressure	<6.5Mpa
Net Weight	50Kg
Reverse Osmosis Membrane	RO membrane shell
Material Composition	SUS316 stainless steel

System Safety Features

High pressure unloading protection - automatic shutdown with sound and light alarm when water pressure exceeds 6.2MPa
Low-pressure shutdown protection - automatic shutdown with alarm when high-pressure pump inlet pressure is less than 0.05MPa
Manual multi-way valve for multi-media filter cleaning when differential pressure reaches 0.1MPa
Reverse osmosis membrane cleaning system for physical cleaning, chemical cleaning, and protective fluid refilling

Main Components & Accessories

Inlet pump: SUS316

Multi-media filter: Ø100FRP

Security filter: 10' x 10μm, UPVC

Precision filter: 10' x 5μm, UPVC

High pressure pump: Italy imported AR brand / South pump (CNP)

Reverse osmosis membrane: LG / U.S. Dow / Toray / Hydrogen seawater membrane

Membrane shell: Chengda sea (FirstLine) FRP material

Cleaning tank: PE

Chemical cleaning device: System supporting

Electrical components: Schneider brand

Conductivity meter: Kreda brand

Factory Equipment Package

Water treatment equipment
Product operating instructions and instructional videos
Completion documentation (product certification, factory test report, packaging list)
Other consumables and accessories

* Water production refers to conditions at 25°C water temperature, 35000mg/L salt content, and 5Mpa operating pressure.

* Equipment can be customized according to customer requirements.

Important Note: Due to the specialized nature of this product, please contact our customer service before purchasing. Our team will recommend the appropriate system based on your water consumption needs and water quality conditions. To avoid future complications, please do not purchase equipment without consultation. For specific technical specifications, detailed parameters, or product images, please contact customer service for comprehensive assistance. Thank you for your support of Nettronics environmental solutions.
