Specifications
Highlight:
Manual Control Descaling Water Purifier
,Automatic Descaling Water Purifier
,2kg Descaling Water Purifier
Control Method:
Automatic And Manual
Control Mode:
Flow Rate Type, Time Type
Application:
Treat Hard Water
Operating Temperature:
5-50 Degrees Celsius
Inlet Water Pressure:
0.2～0.4Mpa
Water Softening Method:
Ion Exchange
Flow Rate:
10 Gallons Per Minute
Keywords:
Water Softener
Weight:
1- 2kglink Up
Capacity:
1000-3000 Liters Per Hour
Function:
Soften Water And Remove Hardness
Material:
Stainless Steel
Type:
Whole House Water Filter
Filter Size:
20 Inches
Filtration Method:
Manganese Sand, Activated Carbon, Quartzite
Maximum Pressure:
1000-100000 Psi
Warranty:
1 Year
Dimensions:
20 X 4.5 Inches
Dimensional flow:
Communication Negotiation
Key Attributes
Brand Name:
nettronics
Model Number:
JC-1-200T/D
Place of Origin:
sino
Certification:
EC
Minimum Order Quantity:
1
Price:
liaise
Supply Ability:
liaise
Delivery Time:
7-10working days
Payment Terms:
T/T
Standard Packaging:
Export Wooden Box
Product Description

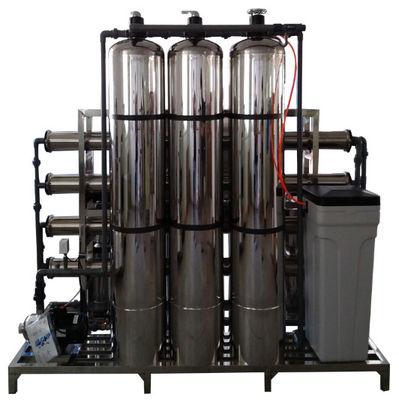

Automatic and Manual Control Descaling Water Purifier
Automatic Iron and Manganese Removal Well Water Filter designed for optimal performance with 2000L capacity.
Iron and Manganese Filter System
Groundwater in many regions contains elevated levels of iron (5-15mg/L, up to 20-39mg/L) and manganese (0.5-2.0mg/L, sometimes exceeding 2.0mg/L). When untreated, this water appears clear initially but becomes turbid over time and develops a ferruginous odor. Excessive iron and manganese can damage ion exchange resins, contaminate reverse osmosis membranes, cause scaling in boilers, and promote iron bacteria growth in cooling systems.
Our iron and manganese removal filter combines oxidation, ion replacement, retention, and clarification processes in a customized design that delivers reliable, stable water treatment results.
Treatment Process and Standards
Effective iron and manganese removal requires aeration to oxidize bivalent iron and manganese into Fe(OH)₃ and MnO₂. Depending on concentration levels, we employ jet aeration or hollow multi-faceted ball aeration systems. Single or multi-stage filtration ensures treated water meets national drinking water standards with iron content ≤0.3mg/L and manganese content ≤0.1mg/L.
After treatment, groundwater with previously elevated iron content (typically 2-16mg/L) achieves iron levels ≤0.3mg/L, fully compliant with GB5749-85 drinking water quality standards.
Application Scope
- Groundwater iron removal systems for iron content ≤8mg/L
- Groundwater iron removal systems for iron content >8mg/L to ≤16mg/L
- Ideal for small towns, rural water supply, industrial and mining enterprises, industrial water applications, and water softening/desalination processes
System Advantages
- Fully automatic operation integrating water inlet, oxygen flushing, distribution, filtration, backwashing, and discharge processes
- No additional equipment required - eliminates need for suction devices, air compressors, backwash pumps, or water towers
- High-efficiency manganese sand filter media ensures consistent water quality and quantity
- Optional electrical control system with high/low water level monitoring enables fully automated, unattended operation
Technical Parameters
| Parameter | Specification |
|---|---|
| Applicable Feed Water Iron Content | ≤8mg/L or >8mg/L～≤16mg/L |
| Effluent Iron Content | ≤0.3mg/L (GB5749-85 compliant) |
| Surface Load | 8-9 M³/H·M² |
| Flushing Intensity | 14-16 L/S·M² |
| Flushing Time | 4-6 minutes (adjustable) |
| Inlet Pressure | 0.2 MPa |
| Filter Media | Delicate manganese sand 0.5-2mm particle size |
| Working Temperature | 5℃～40℃ (custom temperatures available) |
Multi-Media Filtration System
This system effectively removes suspended matter, particles, colloids, turbidity, and chromaticity from raw water. Advanced micro-flocculation filtration with multiple layers of specialized media ensures SDI values ≤4, providing critical protection for downstream RO systems.
Multi-media filtration efficiently removes insoluble particles including oxides, turbidity, and visible matter with low operational costs and easy maintenance. Backwash cycles occur every 16-48 hours, controlled by pressure parameters and automated sequencing.
Activated Carbon Filtration
Our activated carbon process provides essential water treatment capabilities including:
- De-coloring: Removes chromaticity from iron, manganese, and organic pollutants
- Dechlorination: Eliminates odors from residual chlorine
- Organic compound removal: Targets pesticides, insecticides, chlorinated hydrocarbons, and aromatic compounds
- BOD and COD reduction
- Organic chlorine removal: Effectively eliminates THMS and other disinfection byproducts
- Ammonia and nitrite removal
- Protection for ultrafiltration and reverse osmosis cartridges
- Odor elimination and removal of trace heavy metals
Water Softening System
Our softening system utilizes strong acid-type cationic resin to remove calcium and magnesium ions, reducing water hardness to <0.03 meg/L (CaCO₃) and minimizing scale formation.
The corrosion-resistant stainless steel tank (3,000L/hr capacity) features a durable control valve and high-efficiency cation resin with uniform granularity and large exchange capacity.
The integrated salt suction system includes liquid level control, filtration, and automatic water return functions to prevent contaminant entry during regeneration cycles. Widely applied in boiler water treatment, solar heating, chemical industry, and aquaculture.
Important Note: Due to product specificity, please contact our customer service before purchasing. Our team will analyze your water consumption and quality issues to recommend appropriate products. For detailed specifications, parameters, or additional images, please consult our customer service representatives. We appreciate your support of Net Environmental Protection.
