Teaching Small Scale Desalination Demonstrator

Name: Teaching Small Scale Desalination Demonstrator
Brand: Dongguan Jingchuang Environmental Protection Equipment Co.
SKU: JC-1T/D
Availability: InStock

Brand Name:	nettronics
Model Number:	JC-1T/D
MOQ:	1
Price:	liaise
Payment Terms:	T/T
Supply Ability:	liaise

Detail Information

Product Description

Detail Information

Place of Origin:

sino

Certification:

Product Model:

JC-1T/D

Freshwater Production:

1000L/D

Power (output):

0.55kw

Power Supply:

AC24V-220V / 50-60Hz

Water Quality:

Conforms To Drinking Water Quality Standard GB5749-2022

Product Size (L*B*H):

550mm*550mm*1280mm

Weights:

60KG

Main Features:

Compact And Generous Structure; Easy To Operate And Maintain

Packaging Details:

Export Wooden Box

Highlight:

Small Scale Desalination Demonstrator

Teaching Small Scale Desalination

Product Description

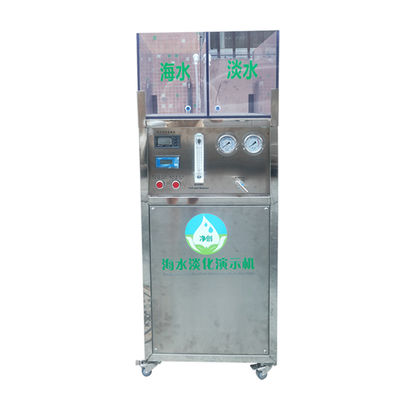

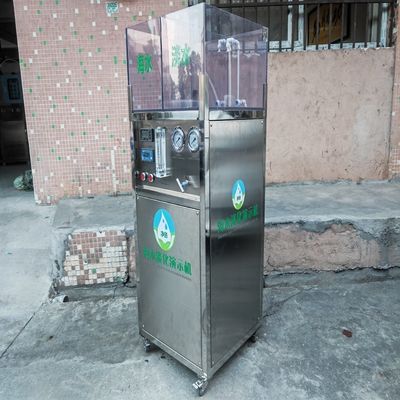

Teaching Small Scale Desalination Demonstrator

This compact experimental teaching apparatus demonstrates seawater desalination principles in an educational setting. Designed with mobility in mind, the unit features built-in wheels for flexible placement and operates with low energy consumption. The system includes separate tanks for seawater and desalinated water, providing a complete demonstration of the purification process.

With over 2 billion people worldwide facing freshwater scarcity issues—particularly in island nations, saline-alkaline regions, and marine applications like ocean-going vessels and offshore platforms—desalination technology provides critical solutions. This demonstrator showcases how desalination units address drinking water challenges in ships, islands, drilling platforms, and saline-affected areas.

Technical Specifications

Product Model	JC-1T/D
Water Quality Standard	GB5749-2022 Drinking Water Standard
Water Production Rate	250 litres/hour*
Power Consumption	0.55KW
Desalination Rate	>99.5%
Power Supply	AC24V-220V / 50Hz / Three-phase
Produced Water Salinity	<700mg/L
Electrical Control Protection	IP54
System Recovery Rate	25% (varies with temperature and water quality)
Dimensions (L×W×H)	550×550×1280 mm
Operating Pressure	<6.5 MPa
Net Weight	60 Kg
Reverse Osmosis Membrane	RO Membrane Shell
Material Composition	SUS316 Stainless Steel

System Safety Features

High Pressure Protection: Automatic shutdown with audible/visual alarm when pump pressure exceeds 6.2 MPa
Low Pressure Protection: Automatic shutdown with alarm when inlet pressure drops below 0.05 MPa due to insufficient pretreatment supply
Manual Multi-way Valve: Enables multi-media filter cleaning when differential pressure reaches 0.1 MPa
RO Membrane Cleaning System: Supports physical cleaning, chemical cleaning, and protective fluid refilling for membrane maintenance

Premium Component Specifications

Inlet Pump: SUS316 Stainless Steel

Multi-media Filter: Ø10 FRP Construction

Security Filter: 10' × 10μm, UPVC Material

Precision Filter: 10' × 5μm, UPVC Material

High Pressure Pump: Imported AR Brand (Italy) / South Pump (CNP)

Reverse Osmosis Membrane: LG / U.S. Dow / Toray / Hydrogen Seawater Membrane

Membrane Shell: Chengda Sea (FirstLine) FRP Material

Cleaning Tank: 30L PE Container

Chemical Cleaning System: Integrated with main unit

Electrical Components: Schneider Brand

Conductivity Meter: Kreda Brand

Standard Package Contents

Water treatment equipment unit
Product operating instructions and instructional video
Completion documentation (product certification, factory test report, packing list)
Additional consumables and accessories

* Water production rate measured at 25°C water temperature, 35,000 mg/L salt content, and 5 MPa operating pressure.

Custom configurations available based on specific customer requirements and application needs.

Important Notice: Due to the specialized nature of this equipment, please contact our customer service team before purchasing. Our representatives will assess your water consumption needs and water quality challenges to recommend the most suitable solution. To ensure optimal performance and avoid complications, please consult with our experts rather than making uninformed equipment selections. For detailed specifications, technical drawings, or additional information, please contact customer service. We appreciate your interest in Nettronics Environmental Protection solutions.
