Specifications
Highlight:
Dechlorination Water Desalination Equipment
,Double Stage Water Desalination Equipment
,Double Stage Dechlorination Water Desalination Equipment
Product Model:
JC-24T/D
freshwater production:
24000L/D
power (output):
6kw
power supply:
AC220V-380-440V / 50-60Hz
Water quality:
Conforms To Drinking Water Quality Standard GB5749-2022
Product size (L*B*H):
1600mm*900mm*1750mm
weights:
550KG
Main features:
Compact And Generous Structure; Easy To Operate And Maintain
Key Attributes
Brand Name:
nettronics
Model Number:
JC-24T/D
Place of Origin:
sino
Certification:
EC
Minimum Order Quantity:
1
Price:
liaise
Supply Ability:
liaise
Delivery Time:
7-10working days
Payment Terms:
T/T
Standard Packaging:
Export Wooden Box
Product Description

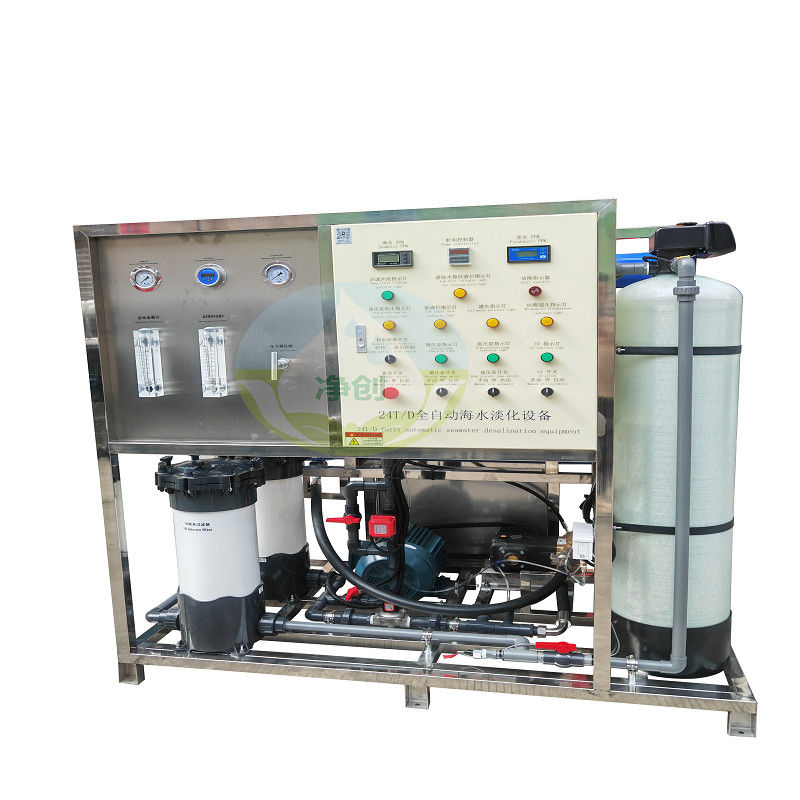

Double Stage Dechlorination Water Desalination Equipment
Drinking water is essential for life, yet over 2 billion people worldwide face freshwater scarcity. This challenge is particularly acute in island nations, saline-alkaline regions, and marine environments including ocean-going vessels and offshore drilling platforms. Our desalination units are specifically engineered to provide reliable drinking water solutions for ships, islands, drilling platforms, and saline-alkaline areas by converting seawater into potable water.
Technical Specifications
| Product Model | JC-24T/D |
| Water Quality | Complies with drinking water standard GB5749-2022 |
| Water Production | 250 litres/hour |
| Power Consumption | 6KW |
| Desalination Rate | >99.5% |
| Power Supply | AC220V-380V / 50Hz / three-phase 440V/60HZ |
| Product Water Salinity | <700mg/L |
| Electrical Control Protection | IP54 |
| System Recovery Rate | 25% (depending on temperature and water quality) |
| Dimensions (L*W*H) | 1600*900*1750 mm |
| Operating Pressure | <6.5Mpa |
| Net Weight | 550Kg |
| Reverse Osmosis Membrane | RO membrane shell |
| Material Composition | SUS316 stainless steel |
System Safety Features
- High Pressure Protection: Automatic shutdown with audible and visual alarms when high-pressure pump water pressure exceeds 6.2MPa
- Low Pressure Protection: Automatic shutdown with alarms when pretreatment water supply is insufficient (inlet pressure <0.05MPa)
- Manual Multi-way Valve: Enables multi-media filter cleaning when differential pressure reaches 0.1MPa
- RO Membrane Cleaning System: Supports physical cleaning, chemical cleaning, and protective fluid refilling for reverse osmosis membrane components
Premium Components
- Inlet Pump: SUS316 stainless steel construction
- Multi-media Filter: Ø300x1400mm, FRP material
- Security Filter: 20' 5x 10μm, UPVC construction
- Precision Filter: 20' 5x 5μm, UPVC construction
- High Pressure Pump: Imported AR brand (Italy) / South pump (CNP)
- Reverse Osmosis Membrane: LG / U.S. Dow / Toray / Hydrogen seawater membrane
- Membrane Shell: Chengda sea (FirstLine) FRP material
- Cleaning Tank: 50L, PE material
- Chemical Cleaning Device: System integrated
- Electrical Components: Schneider brand
- Conductivity Meter: Kreda brand
Standard Package Includes
- Water treatment equipment
- Product operating instructions and instructional video
- Completion documentation (product certification, factory test report, packing list)
- Additional consumables and accessories
Important Notes:
* Water production specifications are based on conditions of 25°C water temperature, 35,000mg/L salt content, and 5MPa operating pressure.
* Equipment can be customized according to specific customer requirements.
Consultation Required
Due to the specialized nature of this product, please contact our customer service team before purchasing. Our representatives will assess your water consumption needs and water quality challenges to recommend the optimal solution. To ensure proper system selection and avoid future complications, please consult with our experts rather than making uninformed equipment choices. For detailed specifications, technical drawings, or additional information, please contact customer service. We appreciate your interest in Nettronics Environmental Protection solutions!
