Seawater Desalter For Commercial Vessels Puretronics

Name: Seawater Desalter For Commercial Vessels Puretronics
Brand: Dongguan Jingchuang Environmental Protection Equipment Co.
SKU: JC-2T/D
Availability: InStock

Brand Name:	nettronics
Model Number:	JC-2T/D
MOQ:	1
Price:	liaise
Payment Terms:	T/T
Supply Ability:	liaise

Detail Information

Product Description

Detail Information

Place of Origin:

sino

Certification:

Product Model:

JC-2T/D

Freshwater Production:

2000L/D

Power (output):

0.75kw

Power Supply:

AC24V-48V-220V / 50-60Hz

Water Quality:

Conforms To Drinking Water Quality Standard GB5749-2022

Product Size (L*B*H):

800mm*400mm*300mm

Weights:

50KG

Main Features:

Compact And Generous Structure; Easy To Operate And Maintain

Packaging Details:

Export Wooden Box

Highlight:

Commercial Vessels Desalter

Puretronics Seawater Desalter

Commercial Vessels Seawater Desalter

Product Description

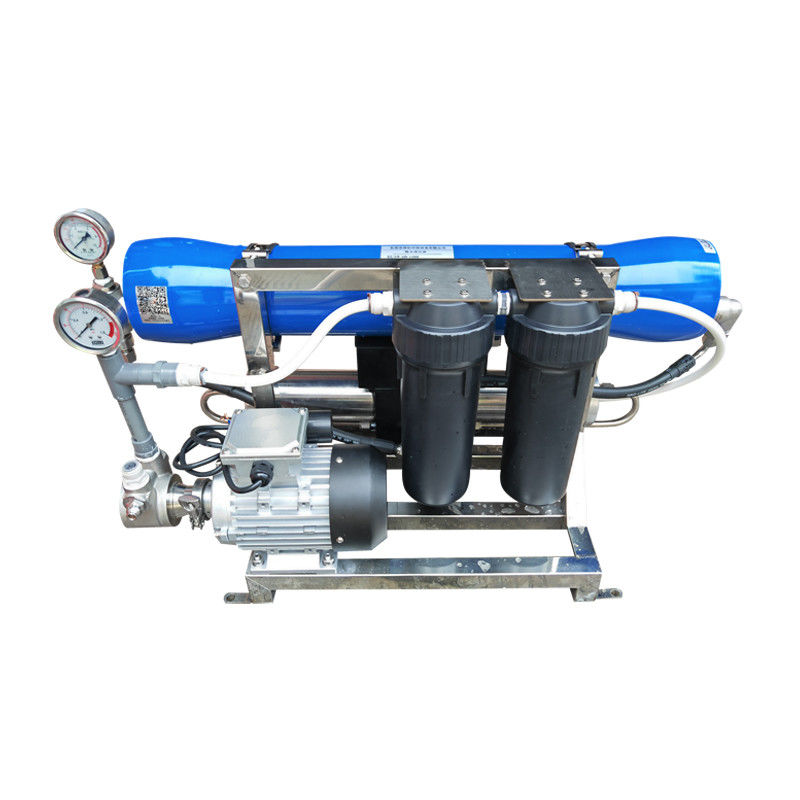

Seawater Desalter For Commercial Vessels Puretronics

One of the most valued solutions for Nettronics' environmentally friendly yachts is the ability to produce fresh water. As a distinctive feature of environmentally friendly yachts, a yacht desalination machine can efficiently purify seawater into drinkable fresh water through reverse osmosis membranes, which reduces the amount of bottled drinking water in reserve. A desalination machine not only minimises plastic waste, but also enhances self-sufficiency.

Drinking water is the source of life. Currently, 2 billion people worldwide face a lack of fresh water resources, with water scarcity concentrated in island countries, saline and alkaline areas, including ocean-going ships, offshore drilling platforms, etc. Desalination units focus on solving the problem of drinking water on ships, islands, drilling platforms, and saline and alkaline areas by converting seawater into potable water.

Product Parameters of Nettronics Desalination System

Product Model	JC-2T/D
Water Quality	Complies with drinking water quality standard GB5749-2022
Water Production	250 litres/hour
Power	0.75KW
Desalination Rate	>99.5%
Power Supply	AC24V-220V / 50Hz /60HZ
Salinity of Produced Water	<700mg/L
Protection Grade of Electric Control	IP54
System Recovery Rate	25% (depending on temperature and water quality)
Dimensions	800400300 (LWH)
Operating Pressure	<6.5Mpa
Net Weight	50Kg
Reverse Osmosis Membrane	RO membrane shell
Material Composition	SUS316 stainless steel

System Functions

High pressure unloading - automatic shutdown protection with sound and light alarm when high pressure pump water pressure exceeds 6.2MPa
Low-pressure shutdown protection - automatic shutdown with sound and light alarm when pretreatment water supply is insufficient (high-pressure pump inlet pressure less than 0.05MPa)
Manual multi-way valve for multi-media filter cleaning when differential pressure reaches 0.1MPa
Reverse osmosis membrane cleaning system for physical cleaning, chemical cleaning, and refilling reverse osmosis membrane components with protective fluid

Main Accessories

Inlet pump: SUS316
Multi-media filter: Ø100FRP
Security filter: 10' x 10μm, UPVC
Precision filter: 10' x 5μm, UPVC
High pressure pump: Italy imported AR brand / South pump (CNP)
Reverse osmosis membrane: LG / U.S. Dow / Toray / Hydrogen seawater membrane
Membrane shell: Chengda sea (FirstLine) FRP material
Cleaning tank: PE
Chemical cleaning device: system supporting
Electrical components: Schneider brand
Conductivity meter: Kreda brand

Factory Equipment List

Water treatment equipment
Product operating instructions and use of video operation
Completion information (product certification, factory test report, packaging list)
Other consumables accessories

* Water production refers to conditions of water temperature 25℃, salt content 35000mg/L, operating pressure 5Mpa

* Equipment can be customised according to customer requirements

Note: Due to product specificity, please contact our customer service before purchasing. Our customer service will recommend the right products based on your water consumption and water quality requirements. To avoid future complications, please do not blindly purchase equipment. For specific details, specifications, parameters, or pictures, please contact customer service. We will answer all your questions. Thank you for your support of Nettronics environmental protection!
