20 m³/24h Reverse Osmosis Fresh Water System with ≥99.2% Desalination Rate and Fully Automatic PLC Control for Ships

Brand Name:	Jingchuang
Model Number:	JC-CC30T/D
MOQ:	1
Price:	Negotiations
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	100

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

WD-231

Operatingpressure:

55 Bar

Desalination Rate:

99.5%

Water Yield:

15000L/D

Operating Pressure:

5MPA

Packaging Net Weight:

620kg

Pump Type:

High Pressure Pump

Productname:

Desalination Watermaker

Desalination Efficiency:

>99.5%

Saltrejectionrate:

99.5%

Control Panel:

Switchgear

Operating Temperature:

5-50 Degrees Celsius

Prefiltration:

5 Micron Sediment Filter

Weight:

500 Kg

Voltage:

220-440V

Packaging Details:

Wooden Box

Highlight:

ship reverse osmosis water system

marine desalination watermaker

fresh water system for vessels

Product Description

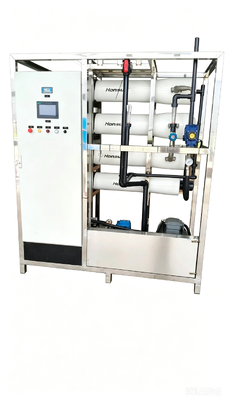

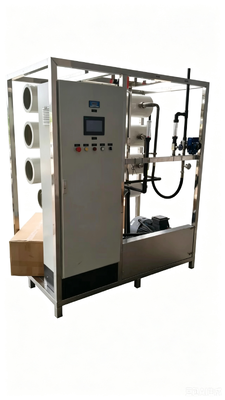

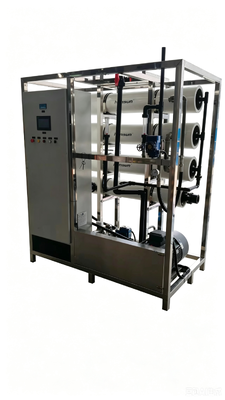

Reverse Osmosis Fresh Water System For Ships

Product Overview

This equipment is a 20 metric tons per day integrated marine reverse osmosis (RO) seawater desalination system, specifically designed for various types of ocean-going vessels, engineering vessels, fishing boats, and offshore platforms. It employs a proven high-pressure reverse osmosis desalination process and features a modular, integrated structure adapted to the harsh marine environment characterized by ship motion, humidity, and salt fog corrosion.

The system is energy-efficient, low-consumption, and operates stably with high automation. The treated water meets standards for shipboard domestic and drinking freshwater and is compatible with classification society certification, making it a core piece of equipment for freshwater supply at sea.

Key Performance Parameters

Rated Water Production	20 m³/24h (at ambient temperature of 25°C and standard seawater salinity conditions)
Instantaneous Water Production	0.85 m³/h
System Desalination Rate	≥99.2% (after more than three years of stable operation)
Feed Water Quality	Natural seawater, feed water salinity ≤40,000 mg/L
Product Water Quality	TDS ≤ 500 mg/L, compliant with GB 5749-2022 standards, suitable for direct drinking and personal hygiene
System Recovery Rate	35%-40% (optimal recovery rate for marine desalination)
Operating Pressure	System high-pressure operating pressure 5.5-6.5 MPa
Operating Temperature	Feedwater temperature 0°C-32°C; ambient operating temperature 0°C-45°C
Operating Humidity	20%-90% (non-condensing, salt-fog environment)

Electrical Operating Parameters

Power Supply	Three-phase AC 380 V/50 Hz; customizable for marine AC 440 V/60 Hz
Total Installed Power	7.5 kW
Operating Power	6.8 kW (standard full-load operation)
Protection Rating	IP54 for the entire unit, suitable for humid and salt-fog environments
Control Method	Fully automatic PLC intelligent control with comprehensive safety features

System Process Flow

Seawater intake → Coarse filtration to trap impurities → Raw water booster pump

Marine-Grade Design: Specifically engineered for harsh marine environments with salt-fog corrosion resistance, ship motion adaptation, and high reliability for continuous operation at sea.
