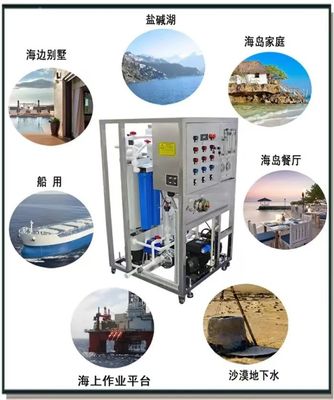

Desalination RO Water Maker For Fishing Vessels

Ship desalination equipment system adopts reverse osmosis technology, pre-treatment configuration of multi-media filters and activated carbon filters, after optimising the system design. As long as the provision of seawater, power supply, start-up can produce water, equipment desalination rate, stable performance, safe and reliable, novel and ingenious design. The system can effectively remove inorganic salts, heavy metal ions, organic matter bacteria and germs in seawater.

Product Model :JC-3T/D

Water quality Comply with drinking water quality standard GB5749-2022

Water production capacity 125 litres/hour

Power 1.8KW

Desalination rate >99.5%

Power supply AC220V -380V/ 50Hz / three-phase

Salinity of produced water <700mg/L Electronic control protection level IP54

System recovery rate 10% (depending on the temperature and water quality)

Dimension 750*550*1400 mm

Operating pressure <6.5Mpa

Net weight 180Kg

Reverse osmosis membrane & membrane shell 1pcs*1pcs

Material composition SUS316 stainless steel

System function

1. high-pressure unloading, when the water pressure of high-pressure pump exceeds 6.2MPa, the equipment will automatically shut down to protect the action and issue sound and light alarms.

2. low-pressure shutdown protection, when the pretreatment water supply is insufficient to cause the high-pressure pump inlet pressure is less than 0.05MPa, it will automatically shut down to protect the action and issue sound and light alarms.

3. configured with a manual multi-way valve, multi-media filter cleaning when the differential pressure reaches 0.1MPa.

 4. reverse osmosis membrane cleaning system can be configured to physically clean, chemically clean and refill the reverse osmosis membrane components with protective fluid.

Main accessories Inlet pump: SUS304

Multi-media filter: Ø200x1100mm, FRP

Security filter: 10’ x 10μm, UPVC

Precision filter: 10’ x 5μm, UPVC

High pressure pump: Italy imported AR brand

Reverse osmosis membrane: LG / TS / Hydrogen

Membrane housing: (FirstLine) FRP material

Cleaning tank: 8L

Chemical cleaning device: system supporting

Electrical components: Schneider brand or equivalent.

Conductivity meter: Kreida.

Factory equipment list

1. water treatment equipment

2. product operation manual, use operation video*

3. Completion information (product certification, factory test report, packing list)

4. other consumables accessories

Note: Due to product specificity need to buy the pro please contact our customer service, customer service will be based on the pro's water consumption and water quality problems to recommend the right products to the pro, in order to avoid unnecessary future trouble please do not blindly buy equipment, such as the need for specific details of the specifications and parameters or picture trouble pro contact customer service, we will answer the pro's questions, thank you for the pro's support of the net environmental protection, thanks!
